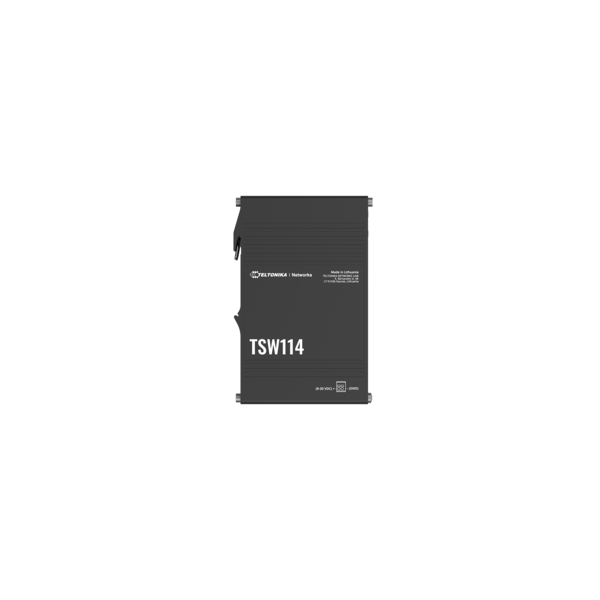

TSW114
Teltonika Networks
SKU: 80331400
Industrial Unmanaged Switch, IP30, 5x10/100/1000Mbps, 9..30V DC-in, Operating temperature -40..75 C
Price on request
Available
Available
Ethernet
Total Ethernet
5
10/100/1000 Mbit/s
5
Switch Properties
MAC Table Size
2000
Jumbo Frame Size
9.2 kB
Supported Protocols
Industrial Protocols
PROFINET
IEEE Standard
ieee_802.3i, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3x for Flow Control, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
9..30 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
113.1 mm
Depth
27.4 mm
Height
80.5 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, WEEE, FCC, CB, rohs
EMS
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 55032, EN 55035
Safety
IEC 62368-1
Dimensions
Net Weight
0.4 kg
Gross Weight
0.9 kg
Ethernet
Total Ethernet
5
10/100/1000 Mbit/s
5
Switch Properties
MAC Table Size
2000
Jumbo Frame Size
9.2 kB
Supported Protocols
Industrial Protocols
PROFINET
IEEE Standard
ieee_802.3i, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3x for Flow Control, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
9..30 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
113.1 mm
Depth
27.4 mm
Height
80.5 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, WEEE, FCC, CB, rohs
EMS
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 55032, EN 55035
Safety
IEC 62368-1
Dimensions
Net Weight
0.4 kg
Gross Weight
0.9 kg
Ethernet
Total Ethernet
5
10/100/1000 Mbit/s
5
Switch Properties
MAC Table Size
2000
Jumbo Frame Size
9.2 kB
Supported Protocols
Industrial Protocols
PROFINET
IEEE Standard
ieee_802.3i, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3x for Flow Control, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
9..30 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
113.1 mm
Depth
27.4 mm
Height
80.5 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, WEEE, FCC, CB, rohs
EMS
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 55032, EN 55035
Safety
IEC 62368-1
Dimensions
Net Weight
0.4 kg
Gross Weight
0.9 kg
Ethernet
Total Ethernet
5
10/100/1000 Mbit/s
5
Switch Properties
MAC Table Size
2000
Jumbo Frame Size
9.2 kB
Supported Protocols
Industrial Protocols
PROFINET
IEEE Standard
ieee_802.3i, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3x for Flow Control, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
9..30 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
113.1 mm
Depth
27.4 mm
Height
80.5 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, WEEE, FCC, CB, rohs
EMS
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 55032, EN 55035
Safety
IEC 62368-1
Dimensions
Net Weight
0.4 kg
Gross Weight
0.9 kg
Documentation
Documentation
Documentation
Documentation
Get a Quote
