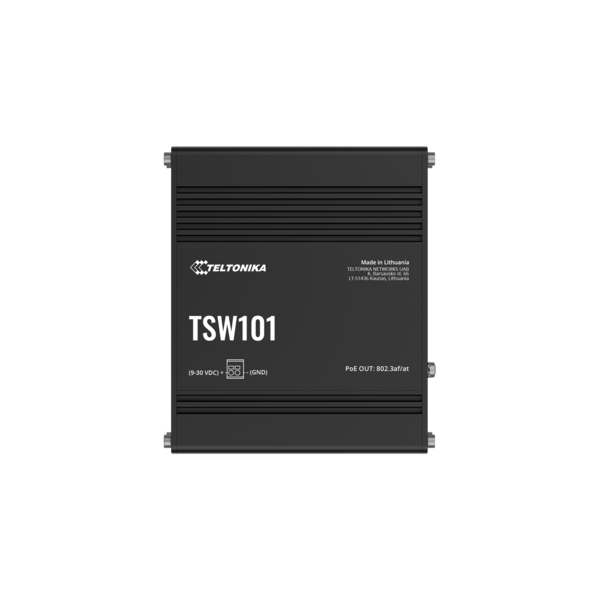

TSW101
Teltonika Networks
SKU: 80363500
Industrial Unmanaged AUTOMOTIVE PoE+ Switch, 5x10/100/1000Mbps, 4xPoE+ ports, 9..30 VDC, Operating Temperature -40..75 C
Price on request
Available
Available
Ethernet
Total Ethernet
5
10/100/1000 Mbit/s
5
PoE+ 10/100/1000 Mbit/s
4
Switch Properties
MAC Table Size
2000
Jumbo Frame Size
9.2 kB
Supported Protocols
Industrial Protocols
PROFINET
IEEE Standard
ieee_802.3i, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
9..30 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
115 mm
Depth
32 mm
Height
95 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC, EAC, CB
EMS
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11, EN 55032, EN 55035
Vehicle
E-Mark
Safety
IEC 62368-1
Dimensions
Net Weight
0.4 kg
Gross Weight
0.9 kg
