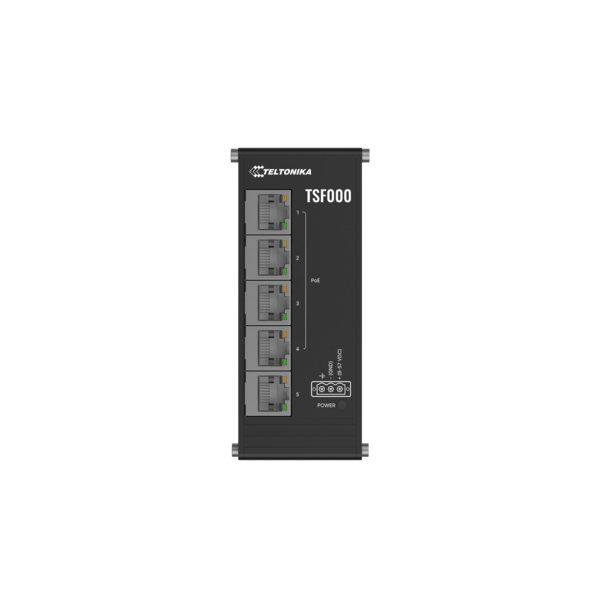

TSF000
Teltonika Networks
SKU: 80365700
LOW PROFILE POE+ SWITCH, IP30, 5x10/100Mbps, 4xPoE+, 7..57V DC-in, Operating temperature -40..75 C
Price on request
Available
Available
Ethernet
Total Ethernet
5
10/100 Mbit/s
5
PoE/PoE+ 10/100 Mbit/s
4
Switch Properties
MAC Table Size
2000
Jumbo Frame Size
9.2 kB
Supported Protocols
Industrial Protocols
PROFINET
IEEE Standard
ieee_802.3i, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
7..57 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
113 mm
Depth
28 mm
Height
50 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, WEEE, FCC, CB
Dimensions
Net Weight
0.14 kg
Gross Weight
0.6 kg
