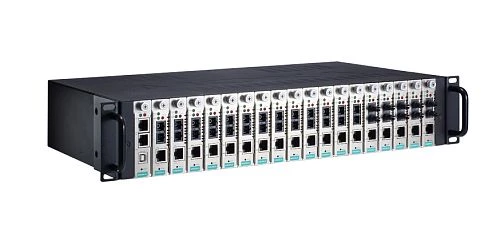

TRC-2190-DC-48V
MOXA
SKU: 07443800
2U rackmount chassis, with a single 36 to 53 VDC input, 18 slots on the front panel, and CSM-MN01 managed module
Price on request
Available
Available
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Type 10/100 Mbit/s
2xRJ-45
Supported Protocols
Managment Protocols
SMTP, SNMPv1/v2c/v3, HTTP, Telnet, DNS, DHCP, TCP, ICMP
Security Protocols
HTTPS, SSH
Expansion Module
Quantity of Slots
18
Supported Module
CSM-200, TCF-142-RM, CSM-400
LED / Controls
Setup of Operation Mode
Telnet, Console Port, Web-interface
Connectors
Connectors
Console Port USB
System Power Input
Input Voltage AC
36..53 V
Power Supply Reserve input Voltage AC
110..240 V
Operating Conditions
Operating Temperature
-20..55 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Dimensions and weight
Width
440 mm
Depth
88 mm
Height
260 mm
Standards and Certifications
Certifications
CE, WEEE, FCC
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11
Safety
UL 60950-1, EN 60950-1
Dimensions
Gross Weight
8.6 kg
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Type 10/100 Mbit/s
2xRJ-45
