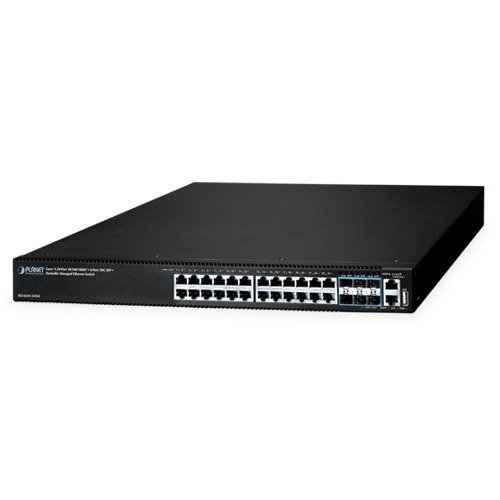

SGS-6341-24T6X
Planet
SKU: 80269700
Stackable L3 Managed Ethernet Switch, 24x10/100/1000Base-T, 6x10GBase-SR/LR SFP+, 1x10/100Base-T, 1xUSB, 100..240 VAC, Operating Temperature 0..50 C
Price on request
Available
Available
Ethernet
Total Ethernet
24
10/100 Mbit/s
1
10/100/1000 Mbit/s
24
10 Gbit SFP+ Ports
6
Switch Properties
Jumbo Frame Size
12 kB
Supported Protocols
Protocol Layer 3
VRRP, Static Routing, RIP V1/V2, OSPF, PIM-DM, PIM-SM, PIM-SSM, BGP
Managment Protocols
SNMPv1/v2c/v3, Telnet, DNS, QoS, DHCP, NTP, GVRP, TFTP, LACP, CoS, FTP, IGMP Snooping v1/v2/v3
Reservation protocols
MSTP, STP, RSTP
Security Protocols
RADIUS, TACACS+, SSH2
IEEE Standard
ieee_802.3ae, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage AC
100..240 V
Dimensions and weight
Width
440 mm
Depth
380 mm
Height
43.6 mm
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
4.4 kg
Gross Weight
4.9 kg
