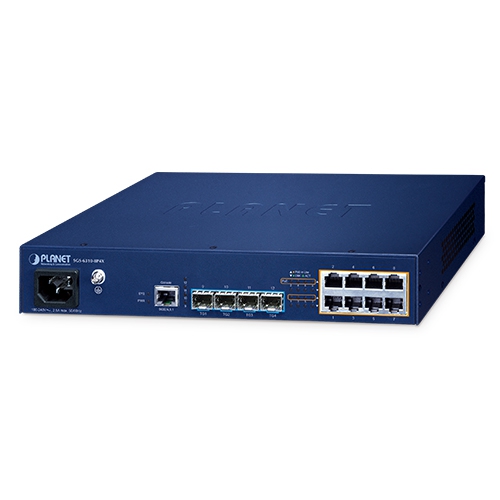

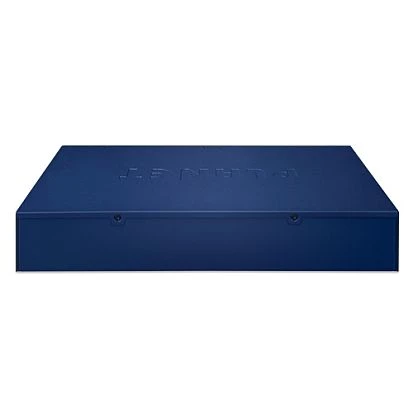

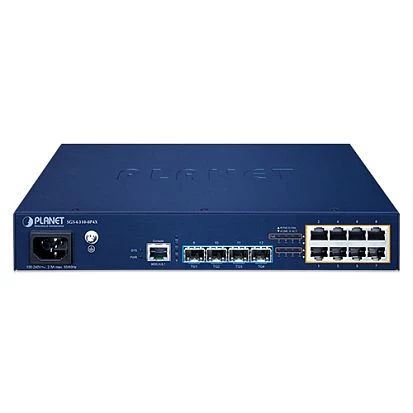

SGS-6310-8P4X
Planet
SKU: 80068100
Stackable L3 Managed Switch, 8x10/100/1000Base-T RJ45 with PoE, 4x10GBase-SR/LR SFP Ports, 1xCOM, 100..240VAC, 36..72VDC, 0..50C Operating Temperature
Price on request
Available
Available
Ethernet
Total Ethernet
8
10/100/1000 Mbit/s
8
10 Gbit SFP+ Ports
4
PoE 10/100 Mbit/s
8
PoE 10/100/1000 Mbit/s
8
Switch Properties
Jumbo Frame Size
9 kB
Supported Protocols
Protocol Layer 3
VRRP, Static Routing, RIP V1/V2, OSPF
Managment Protocols
SNMPv1/v2c/v3, LACP, IGMP Snooping v1/v2/v3
Security Protocols
RADIUS, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
36..72 V
Input Voltage AC
100..240 V
Dimensions and weight
Width
280 mm
Depth
180 mm
Height
44 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
1.6 kg
Gross Weight
2.6 kg
Ethernet
Total Ethernet
8
10/100/1000 Mbit/s
8
10 Gbit SFP+ Ports
4
PoE 10/100 Mbit/s
8
PoE 10/100/1000 Mbit/s
8
Switch Properties
Jumbo Frame Size
9 kB
Supported Protocols
Protocol Layer 3
VRRP, Static Routing, RIP V1/V2, OSPF
Managment Protocols
SNMPv1/v2c/v3, LACP, IGMP Snooping v1/v2/v3
Security Protocols
RADIUS, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
36..72 V
Input Voltage AC
100..240 V
Dimensions and weight
Width
280 mm
Depth
180 mm
Height
44 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
1.6 kg
Gross Weight
2.6 kg
Ethernet
Total Ethernet
8
10/100/1000 Mbit/s
8
10 Gbit SFP+ Ports
4
PoE 10/100 Mbit/s
8
PoE 10/100/1000 Mbit/s
8
Switch Properties
Jumbo Frame Size
9 kB
Supported Protocols
Protocol Layer 3
VRRP, Static Routing, RIP V1/V2, OSPF
Managment Protocols
SNMPv1/v2c/v3, LACP, IGMP Snooping v1/v2/v3
Security Protocols
RADIUS, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
36..72 V
Input Voltage AC
100..240 V
Dimensions and weight
Width
280 mm
Depth
180 mm
Height
44 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
1.6 kg
Gross Weight
2.6 kg
Ethernet
Total Ethernet
8
10/100/1000 Mbit/s
8
10 Gbit SFP+ Ports
4
PoE 10/100 Mbit/s
8
PoE 10/100/1000 Mbit/s
8
Switch Properties
Jumbo Frame Size
9 kB
Supported Protocols
Protocol Layer 3
VRRP, Static Routing, RIP V1/V2, OSPF
Managment Protocols
SNMPv1/v2c/v3, LACP, IGMP Snooping v1/v2/v3
Security Protocols
RADIUS, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
36..72 V
Input Voltage AC
100..240 V
Dimensions and weight
Width
280 mm
Depth
180 mm
Height
44 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
1.6 kg
Gross Weight
2.6 kg
