S24M-AD/PC

S24M-AD/PC

IEI
SKU: 07021100

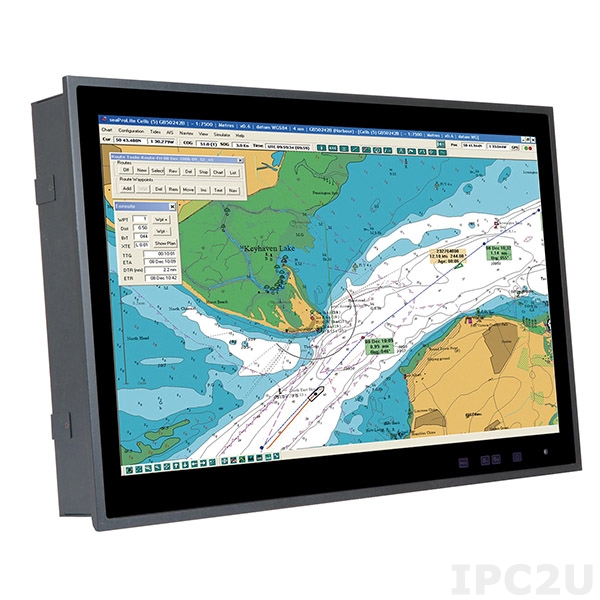

Marine Monitor 24" FHD 300cd/m2 Marine Display with AC and DC redundant power, PCAP touch screen, 1920x1080, 2xVGA, 2xDVI, 1xVGA Out, BNC, R10
End-of-life product

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Wall VESA 100
Protection Level of Front Side (Panel)
IP66
Protection Level of Chassis
IP22
Material Front Side (Panel)
Aluminum
Display
Display Type
LCD A-MVA
Diagonal
24 "
Maximum resolution
1980x1080 Dots
Aspect Ratio
16:9
Brightness
300 Cd/m2
Contrast Ratio
5000~1
Input Interface
VGA, DVI-D, BNC composite
Touch Screen
Touch Screen Type
Capacitive
Interface
USB
LED / Controls
LED
Power LED
Controls
On/Off, KeyPad
Additional Functions
Sensors
Light Sensor
Connectors
Connectors
DB9, 2xDVI-D, 2xDB15 VGA, RJ45, 1xUSB, DB15 Female, 1xCOM (terminal block), BNC In, BNC Out, 1xBuzzer
System Power Input
Input Voltage DC
18..36 V
Input Voltage AC
100..240 V
Operating Conditions
Operating Temperature
-15..55 °C
Dimensions and weight
Width
592 mm
Height
374 mm
Depth
113 mm
Standards and Certifications
Certifications
CE, FCC
Marine grade
DNV, IACS-E10, IEC 60945 4th
Dimensions
Net Weight
11.48 kg
Gross Weight
15.97 kg
Construction
