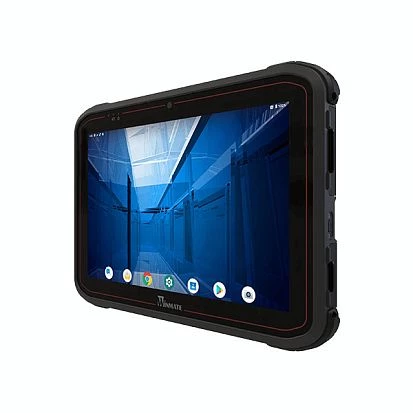

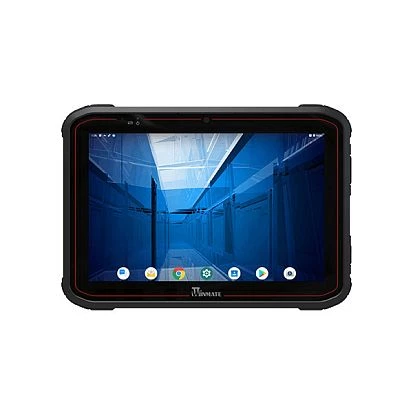

S101M9

SKU: 09648900

10.1" Rugged Tablet PC, 1920x1200, ARM A73 x4 2.0GHz +A53 x4 2.0GHz, 4GB RAM, 32GB storage, WiFi/BT/GNSS, P-CAP touch, Android 11, Battery 11.4V 3500mAh Li-Ion

Price on request

Construction

Construction Chassis

Rubber

Protection Level of Chassis

IP65

Type

Fanless

Display

Display Type

LCD TFT

Diagonal

10.1 "

Maximum resolution

1920x1200 Dots

Brightness

800 Cd/m2

Contrast Ratio

800~1

Touch Screen

Touch Screen Type

Capacitive

CPU

Processor Installed

ARM Cortex-A53

Max CPU frequency

2 GHz

Memory

Maximum Memory

4 GB

Ethernet

Total Ethernet

10/100/1000 Mbit/s

Interfaces

USB Total

USB v3.x

Drive interfaces

MicroSD

Installed drive

1st Storage Capacity

32 GB

Extension Slots

SIM Card slots

Yes

Additional Functions

Camera Frontside

8 MP

Rear Camera

13 MP

GPS

RFID Reader

Optional

Sensors

Light Sensor, Accelerometer, Gyro, E-compass

Antenna characteristics

Cellular interfaces

4G (Optional)

Bluetooth

Yes

LED / Controls

LED

Battеry Status, Power LED

Connectors

RJ45, 2xUSB, Mic In, Line Out, SIM Card Slot, MicroSD card slot, Micro HDMI

Docking Station

Yes

System Power Input

Input Voltage DC

19..19 V

Power Supply

Type of Power Supply

External power adapter AC/DC

Battery

Battery 1 Technology

Li-ion

Battery Capacity

3500 mA*h

RunTime Battery 1

10 h

Software

Operating System Compatibility

Android

Dimensions and weight

Width

268 mm

Height

187 mm

Depth

22.2 mm

Operating Conditions

Operating Temperature

-10..50 °C

Vibration

MILSTD810H Method 514.6 Procedure I

Shock

MILSTD810H Method 516.6 Procedure I

Standards and Certifications

Certifications

CE, FCC

MIL-STD-810

MIL-STD-810H Test Method 516.8 Shock, MIL-STD-810H Test Method 514.8 Vibration, MIL-STD-810H Test Method 516.8 Drop 3 ft

Dimensions

Net Weight

1 kg

Gross Weight

2 kg
