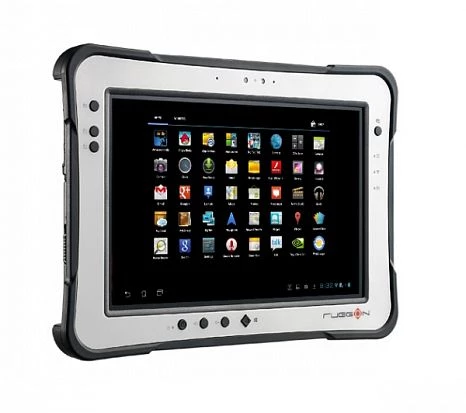

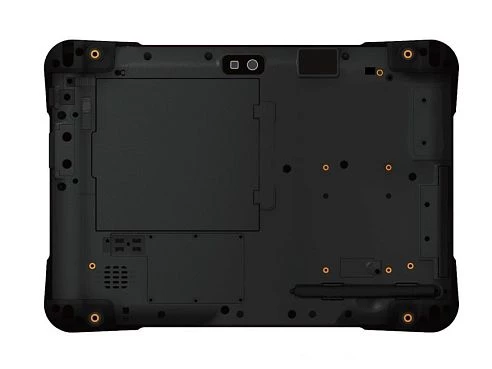

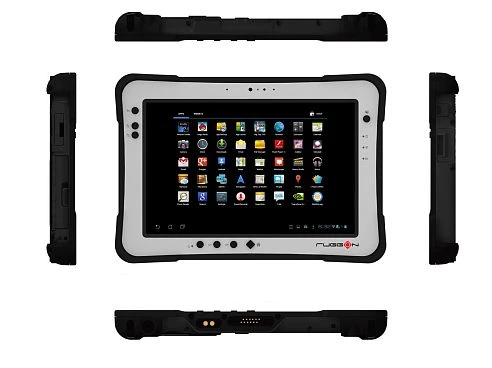

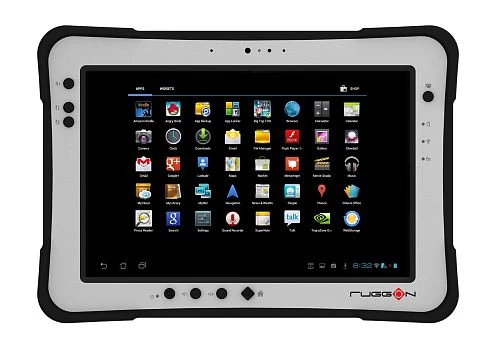

RUGGON-PM-521-Android

SKU: 56199100
Rugged IP65 Tablet PC, 10.1" WUWGA, 1920x1200, Intel Atom E3827 1.75 GHz CPU, 4GB DDR3L, 128GB SSD, Micro HDMI, 1xLAN, 1xCOM, 2xUSB, Micro SIM, Micro SD, GPS, Wi-Fi, BT, 2/5MP Cameras, 4500mAh Bat, Android 4.4
End-of-life product
Construction
Construction Chassis
Rubber
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD
Diagonal
10.1 "
Maximum resolution
1920x1200 Dots
Brightness
1000 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Atom E3827
Max CPU frequency
1.75 GHz
Memory
Form-factor
DDR3L
Default on Board Memory
4 GB
Maximum Memory
8 GB
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Interfaces
COM Total
1
RS-232
1
USB Total
3
USB 2.0
2
USB v3.x
1
Drive interfaces
mSATA
1
MicroSD
1
Installed drive
Drive Type
SSD
Storage Form-Factor
mSATA
1st Storage Capacity
128 GB
Extension Slots
SIM Card slots
Micro-SIM
Additional Functions
Camera Frontside
2 MP
Rear Camera
5 MP
GPS
GPS
MSR Reader
Optional
Smart Card Reader
Optional
NFC
Yes
Sensors
Light Sensor, G-sensor, Gyroscope, Accelerometer
Antenna characteristics
Cellular interfaces
3G, 4G
Bluetooth
v4.0
LED / Controls
LED
Battеry Status, 1xOn/Off LED, WLAN LED
Controls
On/Off, Control Buttons, Function Keys, Volume Keys
Connectors
Connectors
DB9, RJ45 Ethernet, 2xUSB, Audio (in/out/Mic), MicroSD card slot, Micro HDMI, Micro-SIM card slot
Docking Station
Yes
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
65 W
Supported Types of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Battery
Battery Capacity
4500 mA*h
RunTime Battery 1
0 h
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows Embedded Standard 8, Windows 7 Professional, Windows 10, Windows Embedded 8.1 Industry
Operating System Installed
Android
Dimensions and weight
Width
280 mm
Height
195 mm
Depth
23 mm
Operating Conditions
Operating Temperature
-20..50 °C
Standards and Certifications
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock, MIL-STD-810G Test Method 516.4 Drop 120 cm
Dimensions
Net Weight
1.33 kg
Gross Weight
2.3 kg
