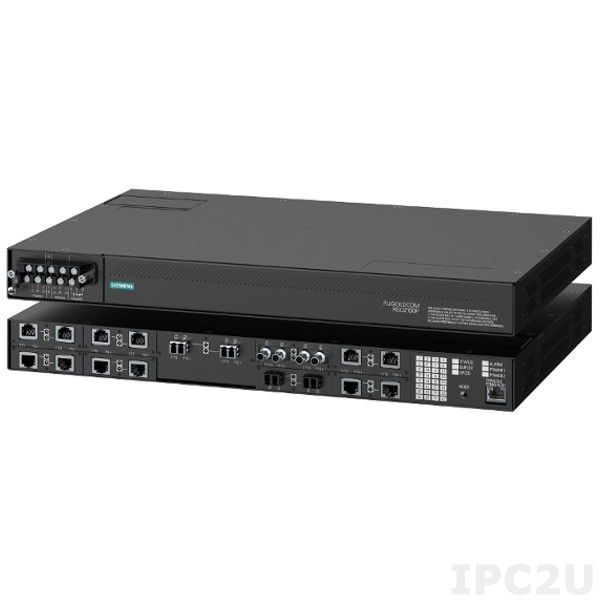

RUGGEDCOM-RSG2100P
Siemens AG
SKU: 56130800
RUGGEDCOM RSG2100P 19-Port Modular Managed Ethernet Switch, 3x1000Base-X, 16x10/100Base-X ports, optional 4x10/100Base-TX PoE ports, 128-bit Encryption, ST, SC, LC connectors, 24/48 VDC or 88..300 VDC / 85..264 VAC, Wide Temp. -40..85C
Price on request
Available
Available
Ethernet
Total Ethernet
14
10/100 Mbit/s
8
Type 10/100 Mbit/s
8xRJ-45
10/100/1000 Mbit/s
2
Type 10/100/1000 Mbit/s
2xRJ-45
PoE 10/100 Mbit/s
4
Switch Properties
Managed
Yes
Switch Level
Layer 2
Supported Protocols
Managment Protocols
SNMPv1/v2c/v3, HTTP, Telnet, VLAN, SNTP, RMON, TFTP, IGMP, DHCP Client
Reservation protocols
HSR, PRP
Security Protocols
SSH, SSL, TACACS+, IEEE 802.1X Network Access Control
IEEE Standard
IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
Digital Output
Total channels of digital output
1
LED / Controls
Setup of Operation Mode
Console Port, Web-interface
System Power Input
Input Voltage DC
10..36 V
Construction
Construction Chassis
Heavy-Duty Steel Chassis
Mounting Configuration
19" Rackmount
Protection Level of Chassis
IP40
Dimensions and weight
Width
464.8 mm
Depth
315 mm
Height
44.2 mm
Operating Conditions
Operating Temperature
-40..85 °C
Standards and Certifications
Certifications
CE, FCC
EMI
FCC Part 15 Subpart B Class A, CISPR 22 Class
Power Automation
IEC 61850-3
Safety
EN 60950, UL, CSA
Dimensions
Net Weight
5.2 kg
Gross Weight
5.7 kg
Ethernet
