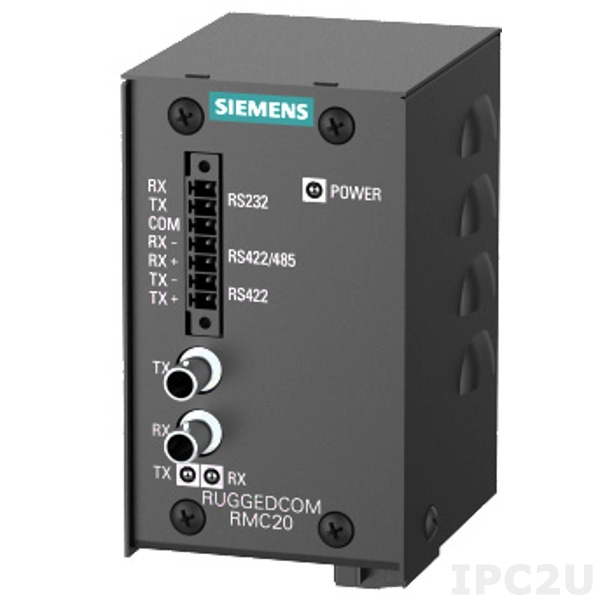

RUGGEDCOM-RMC20
Siemens AG
SKU: 56134200
RUGGEDCOM RMC20 Industrial Serial to Ethernet Server, IP30, Fiber optic interface, 2xRS232/RS422/RS485 DB9 ports, 24VDC input power, Wide Temp. -40.. 85C
Price on request
Available
Available
Fiber
Number of Optical Ports
1xST
Interfaces
COM Total
2
RS-232
1
RS-422/485
1
System Power Input
Input Voltage DC
18..36 V
Operating Conditions
Operating Temperature
-40..85 °C
Construction
Construction Chassis
Heavy-Duty Steel Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP40
Dimensions and weight
Width
58 mm
Depth
94 mm
Height
109 mm
Standards and Certifications
Certifications
CE/FCC
EMI
EN 55022 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A
EMS
EN 61000-6-2, EN 61000-6-4
Power Automation
IEC 61850-3, IEEE 1613
Safety
UL 60950-1, CSA
Dimensions
Net Weight
0.48 kg
Gross Weight
0.78 kg
Fiber
Number of Optical Ports
1xST
Interfaces
COM Total
2
RS-232
1
RS-422/485
1
System Power Input
Input Voltage DC
18..36 V
Operating Conditions
Operating Temperature
-40..85 °C
Construction
Construction Chassis
Heavy-Duty Steel Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP40
Dimensions and weight
Width
58 mm
Depth
94 mm
Height
109 mm
Standards and Certifications
Certifications
CE/FCC
EMI
EN 55022 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A
EMS
EN 61000-6-2, EN 61000-6-4
Power Automation
IEC 61850-3, IEEE 1613
Safety
UL 60950-1, CSA
Dimensions
Net Weight
0.48 kg
Gross Weight
0.78 kg
Fiber
Number of Optical Ports
1xST
Interfaces
COM Total
2
RS-232
1
RS-422/485
1
System Power Input
Input Voltage DC
18..36 V
Operating Conditions
Operating Temperature
-40..85 °C
Construction
Construction Chassis
Heavy-Duty Steel Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP40
Dimensions and weight
Width
58 mm
Depth
94 mm
Height
109 mm
Standards and Certifications
Certifications
CE/FCC
EMI
EN 55022 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A
EMS
EN 61000-6-2, EN 61000-6-4
Power Automation
IEC 61850-3, IEEE 1613
Safety
UL 60950-1, CSA
Dimensions
Net Weight
0.48 kg
Gross Weight
0.78 kg
Fiber
Number of Optical Ports
1xST
Interfaces
COM Total
2
RS-232
1
RS-422/485
1
System Power Input
Input Voltage DC
18..36 V
Operating Conditions
Operating Temperature
-40..85 °C
Construction
Construction Chassis
Heavy-Duty Steel Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP40
Dimensions and weight
Width
58 mm
Depth
94 mm
Height
109 mm
Standards and Certifications
Certifications
CE/FCC
EMI
EN 55022 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A
EMS
EN 61000-6-2, EN 61000-6-4
Power Automation
IEC 61850-3, IEEE 1613
Safety
UL 60950-1, CSA
Dimensions
Net Weight
0.48 kg
Gross Weight
0.78 kg
