RUBY-D718VG2AR-C236

RUBY-D718VG2AR-C236

Portwell
SKU: 06994200

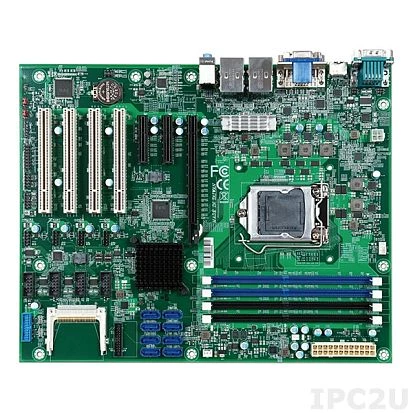

Motherboard ATX Intel Intel Xeon E3-1200v5 LGA1151, Chipset Intel C236, up to 64GB DDR4 ECC, HDMI/DVI-D/VGA, 2xGb LAN, 6xCOM, 8xUSB 2.0, 6xUSB 3.0, 8xSATAIII, TPM, GPIO, Audio (in/out/Mic), 1xPCIe x16, 2xPCIe x4, 4xPCI, CFEX
