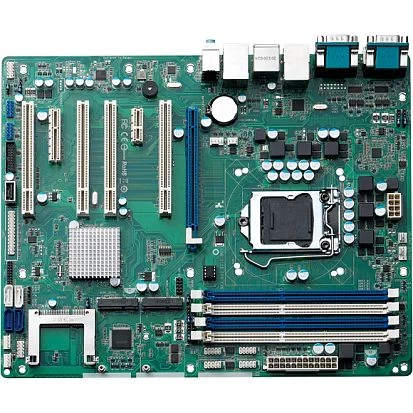

NEX-980-10PBK
NEXCOM
SKU: 66290300
10-in-1 Bulk-Packed ATX, Ivy Bridge/ Q77 , LGA 1155 Socket, 4DDR3 DIMM Socket up to 32 GB, Intel 2GbE, VGA,HDMI, DP, PCIex16, PCIex4, PCIex1 and 4x PCI,2SATA3.0/2SATA2.0, 2USB3.0/6USB2.0, 2RS23/422/485, mSATA, CFast, mPCIe, ATX Power Input
Price on request
Available on order
Available on order
System Architecture
Form Factor
ATX
CPU
СPU Generation/Family
Ivy Bridge
CPU Support Type
Core i3, Core i5, Celeron, Core i7
Socket
LGA1155
Chipset
Chipset
Intel Q77
Memory
Form-factor
DDR3
Socket Type
4xDIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, HDMI, VGA
Ethernet
Controller Type
Intel 82579V 10/100/1000 Mbps, Intel 82583V 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232
4
RS-232/422/485
2
USB Total
12
USB 2.0
8
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Drive interfaces
SATA 3
2
SATA 2
2
RAID Levels
0, 1, 5, 10, Matrix RAID
mSATA
1
CFast Slots
1
Extension Slots
Total
8
PCI Express x16
1
PCI Express x4
1
PCI Express x1
1
Mini-PCI
1
PCI
4
Connectors
Connectors
2xDB9, DVI-I, HDMI, PS/2 Keyboard/Mouse, 2xRJ45 Ethernet, 4xUSB, Audio (in/out/Mic)
Dimensions and weight
Width
244 mm
Length
305 mm
Operating Conditions
Operating Temperature
0..60 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
0.9 kg
Gross Weight
1.3 kg
