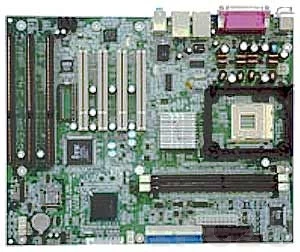

NEX-716VL2G
NEXCOM
SKU: 02190800
ATX Pentium 4/Pentium 4-M 533MHz FSB CPU Card with VGA, 1x Ethernet 10/100, 1x Gigabit Ethernet 10/100/1000, 3x ISA Slots, 4x PCI Slots
Price on request
Available on order
Available on order
System Architecture
Form Factor
ATX
CPU
CPU Support Type
Celeron, Pentium
Socket
Socket-478
Number of CPU
1
Chipset
Chipset
Intel 845GV
Memory
Form-factor
DDR
ECC
No
Maximum Memory
2 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in Chipset
Interfaces
VGA
Ethernet
Controller Type
Intel 82541GI 10/100/1000 Mbps, Intel 82562 10/100 Mbps
Total Ethernet
2
10/100 Mbit/s
2
Interfaces
COM Total
4
RS-422/485
4
USB Total
6
USB 2.0
6
LPT
EPP/ECP
Audio
Audio Controller
Realtek ALC655
Extension Slots
Total
7
PCI
4
ISA
3
Additional Functions
Watchdog timer type
Hardware
Connectors
Connectors
DB9, PS/2 Keyboard/Mouse, 4xUSB, IrDA, GPIO (terminal block), DB9 Male
Dimensions and weight
Width
244 mm
Length
305 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
0.7 kg
Gross Weight
1.3 kg
