IMB550-ARL-W880-SP

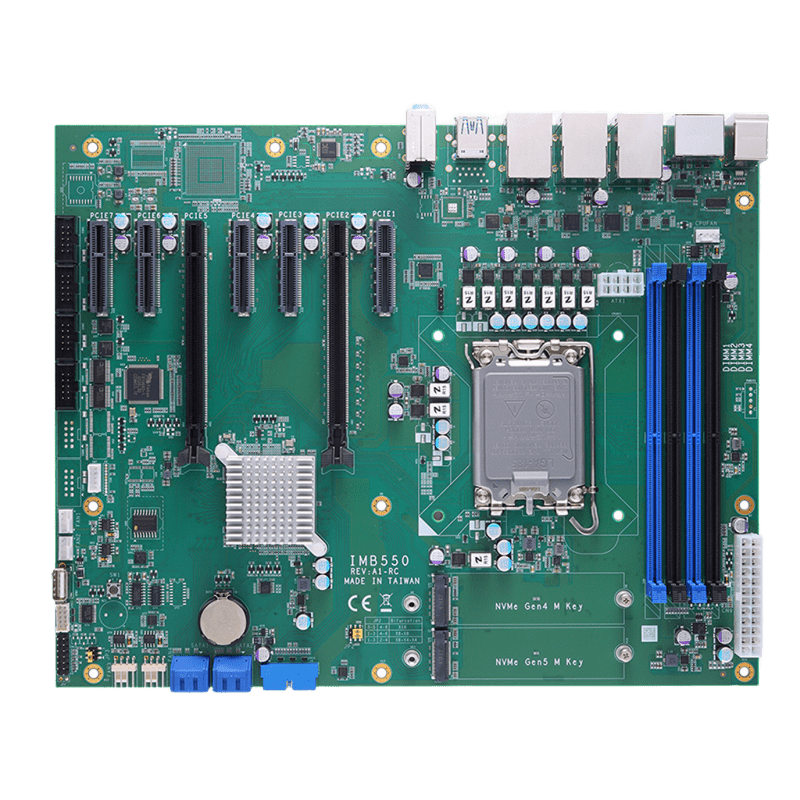

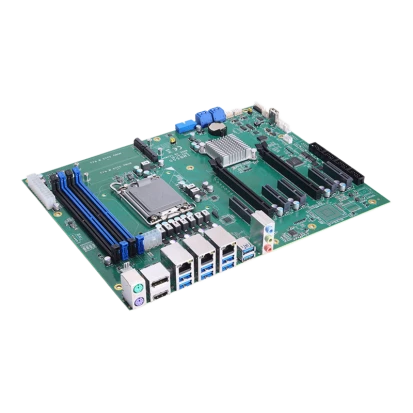

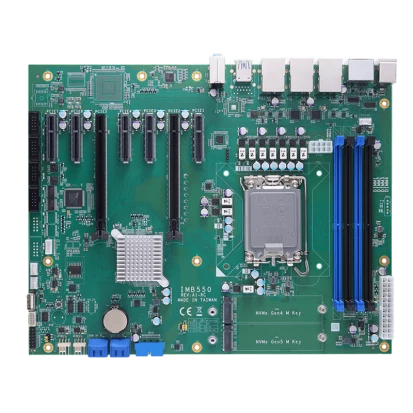

IMB550-ARL-W880-SP

AXIOMTEK
SKU: 80245100
Industrial ATX Motherboard, LGA1851, Intel Core Ultra 9/7/5 CPU, W880 Chipset, Up to 192GB DDR5 RAM, HDMI, DP++, 2x2.5GbE LAN, 1xGbE LAN, 8xUSB 3.2, 4xUSB 3.2 Header, 4xCOM Header, 2xPS/2 KB/M, 4xSATA3, 2xM.2 Key-M, Audio, 2xPCIe x16, 5xPCIe x4 Open
Price on request
Available
Available
System Architecture
Form Factor
ATX
CPU
СPU Generation/Family
Arrow Lake
CPU Support Type
Core Ultra 5, Core Ultra 7, Core Ultra 9
Socket
LGA1851
Chipset
Chipset
Intel W880
Memory
Form-factor
DDR5
Socket Type
4xDIMM
ECC
Yes
Maximum Memory
192 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, HDMI
Ethernet
Controller Type
Intel i219-LM, Intel i226V
Total Ethernet
3
10/100/1000 Mbit/s
1
2,5 Gbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
13
USB 2.0
1
USB v3.x
12
Digital Input-Output
Channels of DIO
8
Drive interfaces
SATA 3
4
RAID Levels
0, 1, 5, 10
M.2
2
Extension Slots
Total
9
PCI Express x16
2
PCI Express x4
5
M.2
2
M.2 Form Factor
2280 M
Connectors
Internal Ports
4xCOM, USB 2.0, 24-pin ATX, 4xSATA, 8-pin ATX, 2xUSB 3.0
Connectors
HDMI, 3xRJ45 Ethernet, 8xUSB, Audio (in/out/Mic), Display Port, 2xPS/2 Keyboard/Mouse
Software
Operating System Compatibility
Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
244 mm
Length
305 mm
Operating Conditions
Operating Temperature
0..60 °C
Humidity
10-95%
Dimensions
Net Weight
1.2 kg
Gross Weight
1.7 kg
