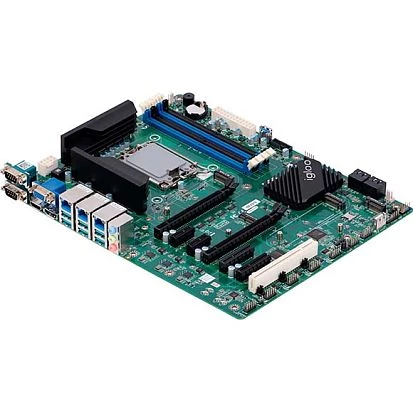

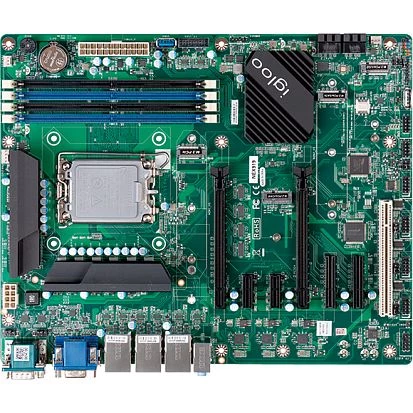

NEX-919
NEXCOM
SKU: 10648800
ATX, socket LGA1700 for 12th/13th Gen Intel Core, Intel Q670E, DDR5, VGA, HDMI, DP, 3x2.5GbE LAN, 6xCOM, 6xUSB 3.2, 4xSATA 3.0, 2xPCIe x16, 2xPCIe x4, 2xPCIE x1, PCI, 2xM.2 Key M 2242/2280. M.2 Key B 3042/52, M.2 Key B 2230
Price on request
Available
Available
System Architecture
Form Factor
ATX
CPU
СPU Generation/Family
Alder Lake, Raptor Lake
CPU Support Type
Core i3, Core i5, Core i7, Core i9
Socket
LGA1700
Memory
Form-factor
DDR5
Maximum Memory
128 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, HDMI, VGA
Ethernet
Controller Type
Intel i225LM, Intel i225V
Total Ethernet
3
2,5 Gbit/s
3
Interfaces
COM Total
6
RS-232
4
RS-232/422/485
2
USB v3.x
6
Drive interfaces
SATA 3
4
M.2
1
Extension Slots
Total
8
PCI Express x16
2
PCI Express x4
2
PCI Express x1
1
M.2
3
M.2 Form Factor
2230 E, 3052 B, 3042 B
Connectors
Internal Ports
4xSATA 3, 4-pin (12V DC CPU), 24-pin ATX
Connectors
2xDB9, DB15 VGA, HDMI, 3xRJ45 Ethernet, 6xUSB, Mic In, Line In, Line Out, Display Port
Software
Operating System Compatibility
Windows 10, Windows 11
Dimensions and weight
Width
305 mm
Length
244 mm
Operating Conditions
Operating Temperature
-10..50 °C
Dimensions
Gross Weight
1 kg
