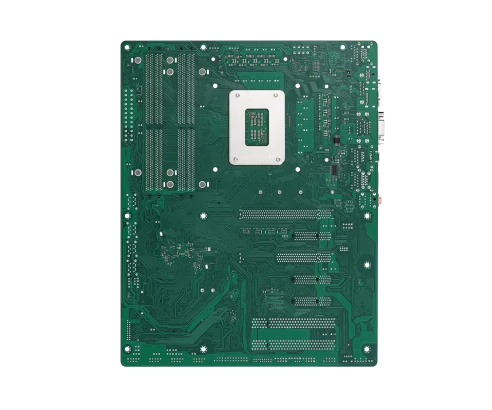

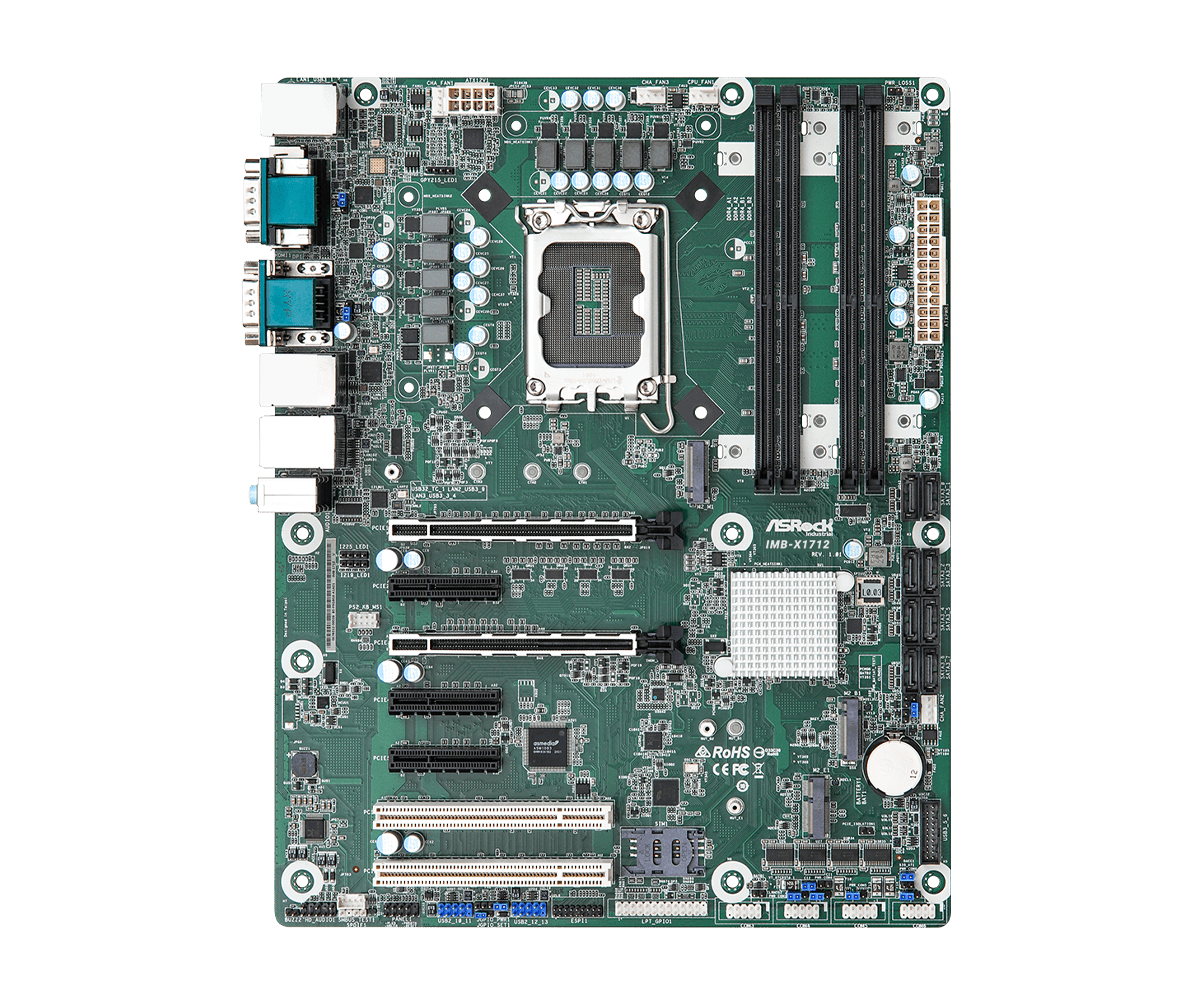

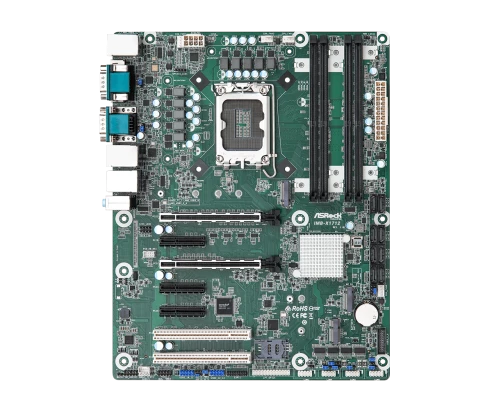

IMB-X1712
ASRock Industrial
SKU: 10090700
ATX, Socket LGA1700 for Intel Core i7/i5/i3/Celeron, Intel W680, DDR4, HDMI/DP/VGA, 3x2.5GbE LAN, 6xCOM, 8xUSB 3.2, 4xUSB 2.0, 8xSATA3, M.2 Key-M, M.2 Key-E, M.2 Key-B, PCIe x16, PCIe x8, 2xPCIe x4, 2xPCI
Price on request
Available
Available
System Architecture
Form Factor
ATX
CPU
СPU Generation/Family
Alder Lake, Raptor Lake
CPU Support Type
Core i3, Core i5, Core i7, Core i9
Socket
LGA1700
Chipset
Chipset
Intel W680
Memory
Form-factor
DDR4
Socket Type
4xDIMM
ECC
Yes
Maximum Memory
128 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, HDMI, VGA
Ethernet
Controller Type
Intel i225LM
Total Ethernet
3
2,5 Gbit/s
3
Interfaces
COM Total
6
RS-232
4
RS-232/422/485
2
USB Total
12
USB 2.0
4
USB v3.x
8
Digital Input-Output
Channels of DIO
16
Drive interfaces
SATA 3
8
RAID Levels
0, 1, 5, 10
M.2
1
Extension Slots
Total
10
PCI Express x16
2
PCI Express x4
3
M.2
3
M.2 Form Factor
2230 E, 3052 B, 3042 B, 25110 M
PCI
2
Connectors
Internal Ports
4xCOM, 4xUSB 2.0, 4-pin (12V DC CPU), 24-pin ATX, 2xUSB 3.0, 8xSATA 3
Connectors

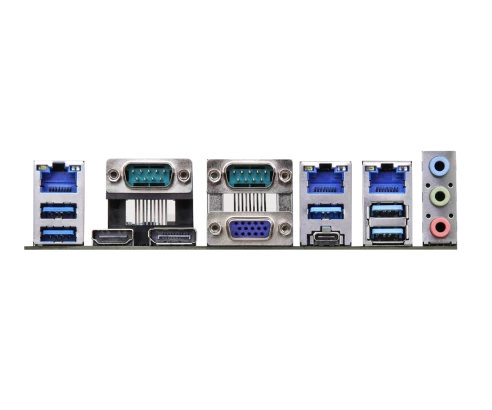

2xDB9, DB15 VGA, HDMI, 3xRJ45 Ethernet, 5xUSB, Mic In, Line In, Line Out, Display Port, USB type C
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
244 mm
Length
305 mm
Operating Conditions
Operating Temperature
-20..70 °C
Humidity
5-90%
Dimensions
Net Weight
0.7 kg
Gross Weight
1.27 kg
