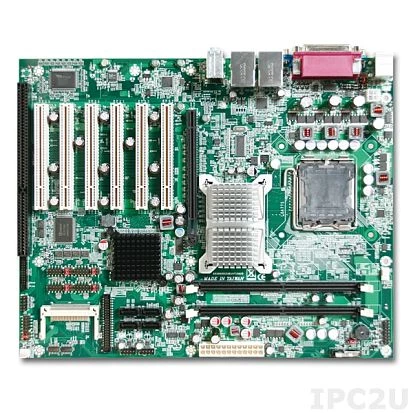

RUBY-9719VGA
Portwell
SKU: 05863400
ATX Socket LGA775 Intel Core 2 Duo/Quad CPU Card with VGA,DDR 2, 1xGigabit Ethernet, Audio, 4xSATA, 5xPCI, 1xPCI/ISA 1xPCI Express x16 Expansion Slots, Audio
End-of-life product
System Architecture
Form Factor
ATX
CPU
CPU Support Type
Core 2 Duo, Core 2 Quad
Socket
LGA775
Chipset
Chipset
Intel G41+ICH7R
Memory
Form-factor
DDR2
Socket Type
2xDIMM
Maximum Memory
4 GB
Graphic
Graphic Controller
Integrated in Chipset
Interfaces
VGA
Ethernet
Controller Type
Intel 82583V 10/100/1000 Mbps
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
6
RS-232
5
RS-232/422/485
1
USB Total
8
USB 2.0
8
LPT
LPT
Audio
Audio Controller
Intel HD Audio
Drive interfaces
CompactFlash Slots
1
Extension Slots
Total
7
PCI Express x16
1
PCI
6
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
44-pin IDE, 24-pin ATX, 5x10-pin RS-232, 4x4-pin USB 2.0, 4xSATA, 8-pin GPIO
Connectors
DB9, DB15 VGA, PS/2 Keyboard/Mouse, RJ45 Ethernet, Audio, LPT
Dimensions and weight
Width
244 mm
Length
305 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Gross Weight
1.12 kg
