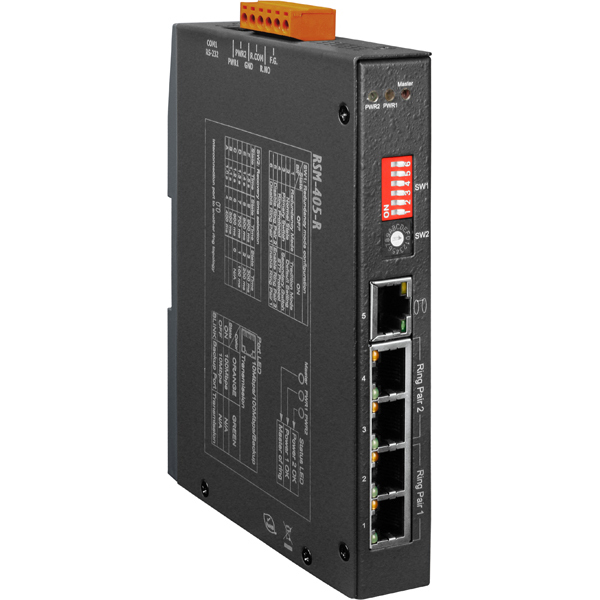

RSM-405-R
ICP DAS
SKU: 06053800
5-Port Real-time Redundant Ring Switch with metal case (RoHS) (+12 ~ +48 VDC, non-isolation)
Price on request
Available
Available
Ethernet
Total Ethernet
5
10/100 Mbit/s
5
Type 10/100 Mbit/s
5xRJ-45
Switch Properties
Managed
No
Switch Level
Layer 2
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
LED / Controls
Setup of Operation Mode
By Switches, Web-interface
Connectors
Connectors
Console Port RS-232 (RJ-45)
System Power Input
Redundant power input
Yes
Input Voltage DC
12..48 V
Power Supply Reserve input Voltage DC
12..48 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
25 mm
Depth
119 mm
Height
168 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE, WEEE, FCC
Dimensions
Gross Weight
0.6 kg
