RQX-58G

RQX-58G

ADLink
SKU: 09065500

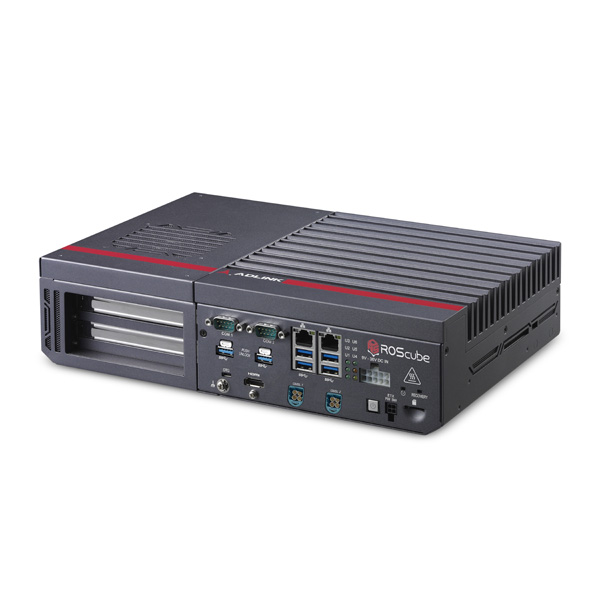

ROS 2.0-enabled robotic controller with NVIDIA Jetson AGX Xavier, FAKRA GMSL2, 32GB RAM, 32GB Flash, HDMI, 2xGbE LAN, 7xUSB 3.1, 1xRS-232/485, 3xRS-232, GPIO, 9...36VDC-in (w/o Audio)
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
Processor Installed
ARM Cortex
Memory
Form-factor
DDR4
Default on Board Memory
32 GB
Maximum Memory
32 GB
Graphic
Graphic Controller
Integrated in Chipset
Ethernet
Controller Type
Intel i210-IT
10/100/1000 Mbit/s
1
Interfaces
USB Total
7
USB 2.0
1
USB v3.x
6
Digital Input-Output
GPIO
12xDigital In / 12xDigital Out
Industrial Interfaces
CAN Port
1
Drive interfaces
MicroSD
1
Extension Slots
Total
3
M.2
2
Mini-PCIe/Mini Card
1
SIM Card slots
1
Antenna characteristics
Cellular interfaces
3G (Optional)
Additional Functions
GPS
GPS
Connectors
Connectors
2xDB9, HDMI, 2xRJ45 Ethernet, 6xUSB, Audio Out, DC Input, 1xMicro USB, Audio In, 2xMini FAKRA, 1xDB50 (UART,SPI,CANbus,I2C,PWM,GPIO)
System Power Input
Input Voltage DC
9 V
Software
Operating System Compatibility
Ubuntu
Dimensions and weight
Width
190 mm
Height
80 mm
Depth
210 mm
Operating Conditions
Operating Temperature
-20..70 °C
Vibration
3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis
Standards and Certifications
Certifications
CE, FCC Class A
Safety
CCC, UL, BSMI
Dimensions
Net Weight
4 kg
Gross Weight
5 kg
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
Processor Installed
ARM Cortex
Memory
Form-factor
DDR4
Default on Board Memory
32 GB
Maximum Memory
32 GB
Graphic
Graphic Controller
Integrated in Chipset
Ethernet
Controller Type
Intel i210-IT
10/100/1000 Mbit/s
1
Interfaces
USB Total
7
USB 2.0
1
USB v3.x
6
Digital Input-Output
GPIO
12xDigital In / 12xDigital Out
Industrial Interfaces
CAN Port
1
Drive interfaces
MicroSD
1
Extension Slots
Total
3
M.2
2
Mini-PCIe/Mini Card
1
SIM Card slots
1
Antenna characteristics
Cellular interfaces
3G (Optional)
Additional Functions
GPS
GPS
Connectors
Connectors
2xDB9, HDMI, 2xRJ45 Ethernet, 6xUSB, Audio Out, DC Input, 1xMicro USB, Audio In, 2xMini FAKRA, 1xDB50 (UART,SPI,CANbus,I2C,PWM,GPIO)
System Power Input
Input Voltage DC
9 V
Software
Operating System Compatibility
Ubuntu
Dimensions and weight
Width
190 mm
Height
80 mm
Depth
210 mm
Operating Conditions
Operating Temperature
-20..70 °C
Vibration
3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis
Standards and Certifications
Certifications
CE, FCC Class A
Safety
CCC, UL, BSMI
Dimensions
Net Weight
4 kg
Gross Weight
5 kg
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
Processor Installed
ARM Cortex
Memory
Form-factor
DDR4
Default on Board Memory
32 GB
Maximum Memory
32 GB
Graphic
Graphic Controller
Integrated in Chipset
Ethernet
Controller Type
Intel i210-IT
10/100/1000 Mbit/s
1
Interfaces
USB Total
7
USB 2.0
1
USB v3.x
6
Digital Input-Output
GPIO
12xDigital In / 12xDigital Out
Industrial Interfaces
CAN Port
1
Drive interfaces
MicroSD
1
Extension Slots
Total
3
M.2
2
Mini-PCIe/Mini Card
1
SIM Card slots
1
Antenna characteristics
Cellular interfaces
3G (Optional)
Additional Functions
GPS
GPS
Connectors
Connectors
2xDB9, HDMI, 2xRJ45 Ethernet, 6xUSB, Audio Out, DC Input, 1xMicro USB, Audio In, 2xMini FAKRA, 1xDB50 (UART,SPI,CANbus,I2C,PWM,GPIO)
System Power Input
Input Voltage DC
9 V
Software
Operating System Compatibility
Ubuntu
Dimensions and weight
Width
190 mm
Height
80 mm
Depth
210 mm
Operating Conditions
Operating Temperature
-20..70 °C
Vibration
3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis
Standards and Certifications
Certifications
CE, FCC Class A
Safety
CCC, UL, BSMI
Dimensions
Net Weight
4 kg
Gross Weight
5 kg
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
Processor Installed
ARM Cortex
Memory
Form-factor
DDR4
Default on Board Memory
32 GB
Maximum Memory
32 GB
Graphic
Graphic Controller
Integrated in Chipset
Ethernet
Controller Type
Intel i210-IT
10/100/1000 Mbit/s
1
Interfaces
USB Total
7
USB 2.0
1
USB v3.x
6
Digital Input-Output
GPIO
12xDigital In / 12xDigital Out
Industrial Interfaces
CAN Port
1
Drive interfaces
MicroSD
1
Extension Slots
Total
3
M.2
2
Mini-PCIe/Mini Card
1
SIM Card slots
1
Antenna characteristics
Cellular interfaces
3G (Optional)
Additional Functions
GPS
GPS
Connectors
Connectors
2xDB9, HDMI, 2xRJ45 Ethernet, 6xUSB, Audio Out, DC Input, 1xMicro USB, Audio In, 2xMini FAKRA, 1xDB50 (UART,SPI,CANbus,I2C,PWM,GPIO)
System Power Input
Input Voltage DC
9 V
Software
Operating System Compatibility
Ubuntu
Dimensions and weight
Width
190 mm
Height
80 mm
Depth
210 mm
Operating Conditions
Operating Temperature
-20..70 °C
Vibration
3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis
Standards and Certifications
Certifications
CE, FCC Class A
Safety
CCC, UL, BSMI
Dimensions
Net Weight
4 kg
Gross Weight
5 kg

Documentation
DS_RQX-
Documentation
DS_RQX-
Documentation
DS_RQX-
Documentation
DS_RQX-

Get a Quote

ADLink
SKU: 09065500
RQX-58G
