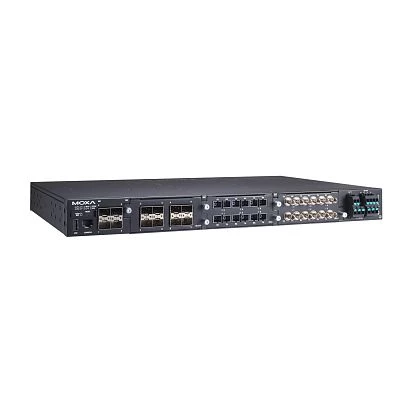

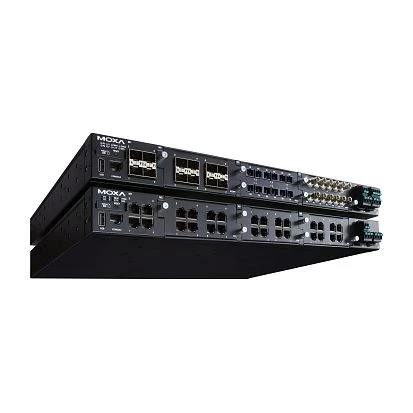

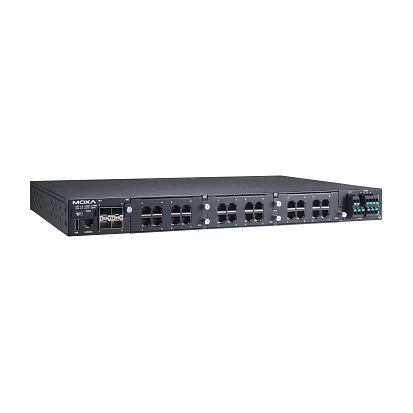

RKS-G4028-L3-PoE-4GS-HV-T
MOXA
SKU: 09851000
Modular managed Ethernet Layer 3 switch with 28 ports, PoE, 4x100/1000BaseSFP, power 110/220 VAC/VDC, -40...+75C
Price on request
Available
Available
Ethernet
Total Ethernet
28
10/100/1000 Mbit/s
24
Power Budget
300 W
Switch Properties
Managed
Yes
Switch Level
Layer 3
Supported functions
Port Mirror, MAC sticky, Port Lock, Rate Limit, Loop Protection, Broadcast Storm Protection, Link Aggregation, Port-Based VLAN, DDM/Fiber Check, Automatic power failure notification, Automatic port failure notification, Flow Control, Back pressure flow control, Access Control Lists, MAC ACL, MAC Authentication Bypass, NTP Authentication, Security features based on IEC 62443, Line-Swap Fast Recovery, Real time clock, Supports network management system
MAC Table Size
16000
Packet Buffer Size
0 kBit
Jumbo Frame Size
9.6 kB
Max. Number of VLANs
256
Priority Queues
8
IGMP Groups
2048
Supported Protocols
Protocol Layer 3
VRRP, Static Routing, OSPF
Reservation protocols
MSTP, STP, Turbo Ring, Turbo Chain, MRP, RSTP
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3bt for Power over Ethernet
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
2A@24V DC
Expansion Module
Quantity of Slots
3
Supported Module
SFP-1G, SFP-1FE, RM-G4000
LED / Controls
Setup of Operation Mode
Telnet, Console Port, Web-interface, Command Line Interface (CLI), Through MXconfig Utility
Connectors
Connectors
Console Port RS-232 (RJ-45), MicroSD card slot, USB type A
System Power Input
Input Voltage DC
88..300 V
Input Voltage AC
85..264 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Protection Level of Chassis
IP30
Height
1 U
Dimensions and weight
Width
440 mm
Depth
300 mm
Height
44 mm
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 55032, EN 55035
Power Automation
IEC 61850-3, IEEE 1613
Rolling Stock
EN 50121-4
Safety
EN 62368-1 (LVD), UL 62368-1, UL 61010
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
4.1 kg
Gross Weight
5.1 kg
Ethernet
Total Ethernet
28
10/100/1000 Mbit/s
24
Power Budget
300 W
Switch Properties
Managed
Yes
Switch Level
Layer 3
Supported functions
Port Mirror, MAC sticky, Port Lock, Rate Limit, Loop Protection, Broadcast Storm Protection, Link Aggregation, Port-Based VLAN, DDM/Fiber Check, Automatic power failure notification, Automatic port failure notification, Flow Control, Back pressure flow control, Access Control Lists, MAC ACL, MAC Authentication Bypass, NTP Authentication, Security features based on IEC 62443, Line-Swap Fast Recovery, Real time clock, Supports network management system
MAC Table Size
16000
Packet Buffer Size
0 kBit
Jumbo Frame Size
9.6 kB
Max. Number of VLANs
256
Priority Queues
8
IGMP Groups
2048
Supported Protocols
Protocol Layer 3
VRRP, Static Routing, OSPF
Reservation protocols
MSTP, STP, Turbo Ring, Turbo Chain, MRP, RSTP
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3bt for Power over Ethernet
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
2A@24V DC
Expansion Module
Quantity of Slots
3
Supported Module
SFP-1G, SFP-1FE, RM-G4000
LED / Controls
Setup of Operation Mode
Telnet, Console Port, Web-interface, Command Line Interface (CLI), Through MXconfig Utility
Connectors
Connectors
Console Port RS-232 (RJ-45), MicroSD card slot, USB type A
System Power Input
Input Voltage DC
88..300 V
Input Voltage AC
85..264 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Protection Level of Chassis
IP30
Height
1 U
Dimensions and weight
Width
440 mm
Depth
300 mm
Height
44 mm
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 55032, EN 55035
Power Automation
IEC 61850-3, IEEE 1613
Rolling Stock
EN 50121-4
Safety
EN 62368-1 (LVD), UL 62368-1, UL 61010
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
4.1 kg
Gross Weight
5.1 kg
Ethernet
Total Ethernet
28
10/100/1000 Mbit/s
24
Power Budget
300 W
Switch Properties
Managed
Yes
Switch Level
Layer 3
Supported functions
Port Mirror, MAC sticky, Port Lock, Rate Limit, Loop Protection, Broadcast Storm Protection, Link Aggregation, Port-Based VLAN, DDM/Fiber Check, Automatic power failure notification, Automatic port failure notification, Flow Control, Back pressure flow control, Access Control Lists, MAC ACL, MAC Authentication Bypass, NTP Authentication, Security features based on IEC 62443, Line-Swap Fast Recovery, Real time clock, Supports network management system
MAC Table Size
16000
Packet Buffer Size
0 kBit
Jumbo Frame Size
9.6 kB
Max. Number of VLANs
256
Priority Queues
8
IGMP Groups
2048
Supported Protocols
Protocol Layer 3
VRRP, Static Routing, OSPF
Reservation protocols
MSTP, STP, Turbo Ring, Turbo Chain, MRP, RSTP
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3bt for Power over Ethernet
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
2A@24V DC
Expansion Module
Quantity of Slots
3
Supported Module
SFP-1G, SFP-1FE, RM-G4000
LED / Controls
Setup of Operation Mode
Telnet, Console Port, Web-interface, Command Line Interface (CLI), Through MXconfig Utility
Connectors
Connectors
Console Port RS-232 (RJ-45), MicroSD card slot, USB type A
System Power Input
Input Voltage DC
88..300 V
Input Voltage AC
85..264 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Protection Level of Chassis
IP30
Height
1 U
Dimensions and weight
Width
440 mm
Depth
300 mm
Height
44 mm
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 55032, EN 55035
Power Automation
IEC 61850-3, IEEE 1613
Rolling Stock
EN 50121-4
Safety
EN 62368-1 (LVD), UL 62368-1, UL 61010
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
4.1 kg
Gross Weight
5.1 kg
Ethernet
Total Ethernet
28
10/100/1000 Mbit/s
24
Power Budget
300 W
Switch Properties
Managed
Yes
Switch Level
Layer 3
Supported functions
Port Mirror, MAC sticky, Port Lock, Rate Limit, Loop Protection, Broadcast Storm Protection, Link Aggregation, Port-Based VLAN, DDM/Fiber Check, Automatic power failure notification, Automatic port failure notification, Flow Control, Back pressure flow control, Access Control Lists, MAC ACL, MAC Authentication Bypass, NTP Authentication, Security features based on IEC 62443, Line-Swap Fast Recovery, Real time clock, Supports network management system
MAC Table Size
16000
Packet Buffer Size
0 kBit
Jumbo Frame Size
9.6 kB
Max. Number of VLANs
256
Priority Queues
8
IGMP Groups
2048
Supported Protocols
Protocol Layer 3
VRRP, Static Routing, OSPF
Reservation protocols
MSTP, STP, Turbo Ring, Turbo Chain, MRP, RSTP
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3bt for Power over Ethernet
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
2A@24V DC
Expansion Module
Quantity of Slots
3
Supported Module
SFP-1G, SFP-1FE, RM-G4000
LED / Controls
Setup of Operation Mode
Telnet, Console Port, Web-interface, Command Line Interface (CLI), Through MXconfig Utility
Connectors
Connectors
Console Port RS-232 (RJ-45), MicroSD card slot, USB type A
System Power Input
Input Voltage DC
88..300 V
Input Voltage AC
85..264 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Protection Level of Chassis
IP30
Height
1 U
Dimensions and weight
Width
440 mm
Depth
300 mm
Height
44 mm
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 55032, EN 55035
Power Automation
IEC 61850-3, IEEE 1613
Rolling Stock
EN 50121-4
Safety
EN 62368-1 (LVD), UL 62368-1, UL 61010
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
4.1 kg
Gross Weight
5.1 kg
