REG5-2812-SFP8-10GSFP4
Leonton
SKU: 80027100

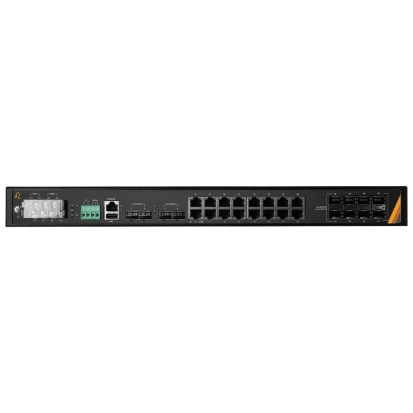

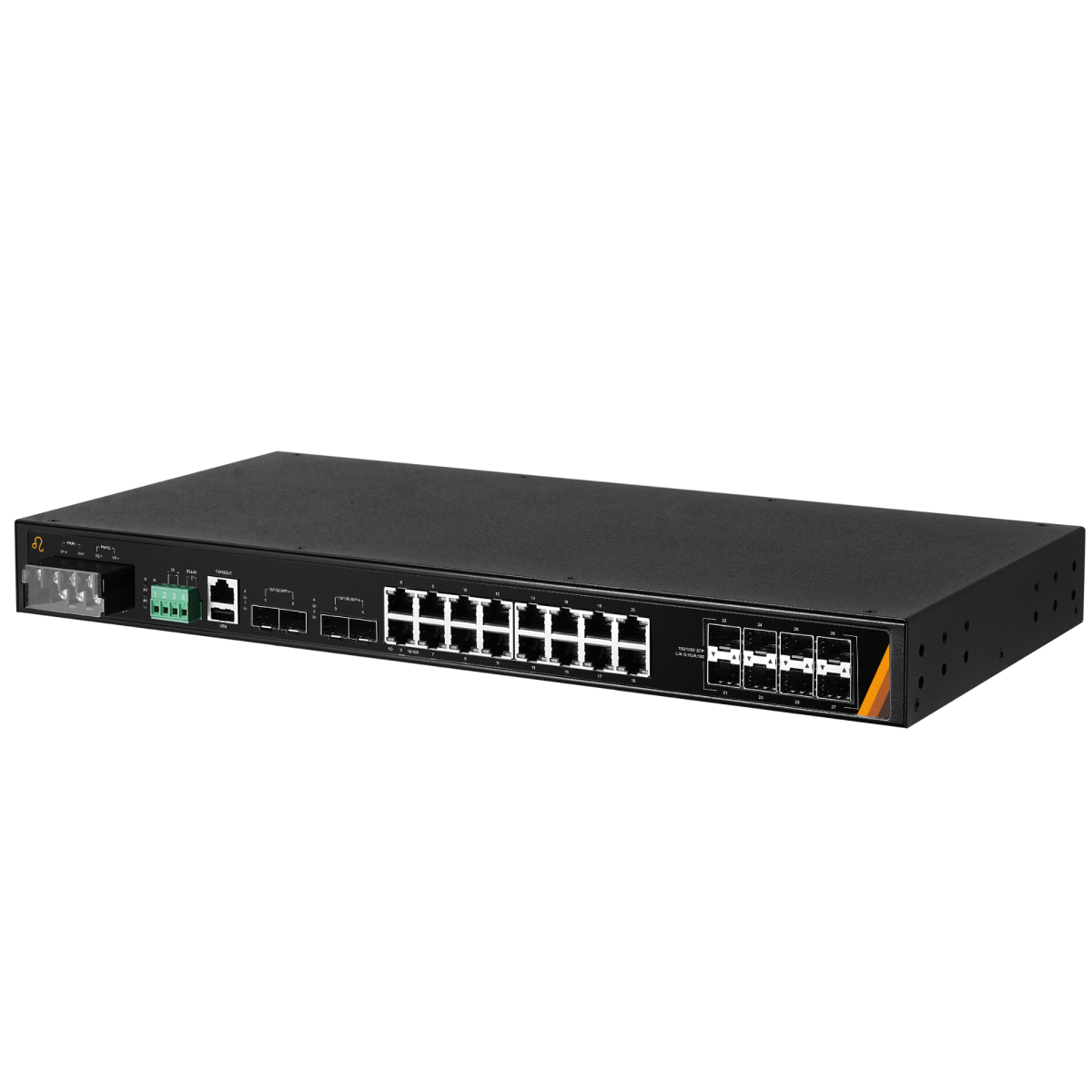

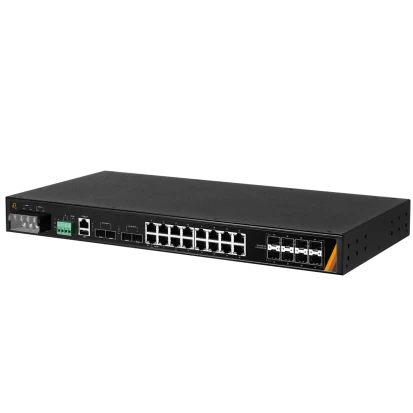

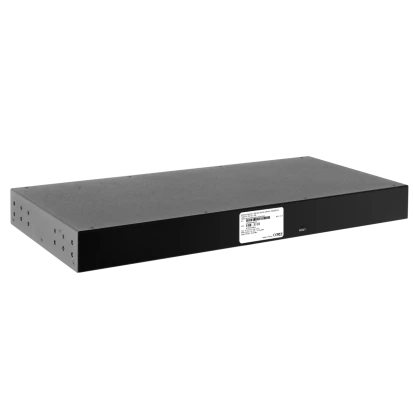

Industrial Rack-Mount Managed Gigabit Ethernet Switch, IP30, 16x10/100/1000Base-T, 8x100/1000Base-X SFP, 4x1G/2.5G/10GbE SFP+, 1xCOM, Dual 12..48VDC, Operating Temperature -10..65 C
Price on request
Available on order
Available on order
Ethernet
Total Ethernet
16
10/100/1000 Mbit/s
16
SFP 100/1000 Mbit Ports
8
10 Gbit SFP+ Ports
4
Switch Properties
MAC Table Size
32000
Jumbo Frame Size
10 kB
Max. Number of VLANs
4095
IGMP Groups
1024
Supported Protocols
Managment Protocols
DHCP Server/Client, SNMPv1/v2c/v3, HTTP, LLDP, Telnet, GVRP, RMON, IGMP Snooping v1/v2/v3, GARP
Reservation protocols
MSTP, STP, RSTP
Security Protocols
HTTPS, SSH, RADIUS, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
12..48 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Protection Level of Chassis
IP30
Dimensions and weight
Width
440 mm
Depth
44 mm
Height
215 mm
Operating Conditions
Operating Temperature
-10..65 °C
Humidity
5-95%
MTBF
195504 h
Dimensions
Net Weight
0.62 kg
Gross Weight
1.2 kg
Ethernet
Total Ethernet
16
10/100/1000 Mbit/s
16
SFP 100/1000 Mbit Ports
8
10 Gbit SFP+ Ports
4
Switch Properties
MAC Table Size
32000
Jumbo Frame Size
10 kB
Max. Number of VLANs
4095
IGMP Groups
1024
Supported Protocols
Managment Protocols
DHCP Server/Client, SNMPv1/v2c/v3, HTTP, LLDP, Telnet, GVRP, RMON, IGMP Snooping v1/v2/v3, GARP
Reservation protocols
MSTP, STP, RSTP
Security Protocols
HTTPS, SSH, RADIUS, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
12..48 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Protection Level of Chassis
IP30
Dimensions and weight
Width
440 mm
Depth
44 mm
Height
215 mm
Operating Conditions
Operating Temperature
-10..65 °C
Humidity
5-95%
MTBF
195504 h
Dimensions
Net Weight
0.62 kg
Gross Weight
1.2 kg
Ethernet
Total Ethernet
16
10/100/1000 Mbit/s
16
SFP 100/1000 Mbit Ports
8
10 Gbit SFP+ Ports
4
Switch Properties
MAC Table Size
32000
Jumbo Frame Size
10 kB
Max. Number of VLANs
4095
IGMP Groups
1024
Supported Protocols
Managment Protocols
DHCP Server/Client, SNMPv1/v2c/v3, HTTP, LLDP, Telnet, GVRP, RMON, IGMP Snooping v1/v2/v3, GARP
Reservation protocols
MSTP, STP, RSTP
Security Protocols
HTTPS, SSH, RADIUS, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
12..48 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Protection Level of Chassis
IP30
Dimensions and weight
Width
440 mm
Depth
44 mm
Height
215 mm
Operating Conditions
Operating Temperature
-10..65 °C
Humidity
5-95%
MTBF
195504 h
Dimensions
Net Weight
0.62 kg
Gross Weight
1.2 kg
Ethernet
Total Ethernet
16
10/100/1000 Mbit/s
16
SFP 100/1000 Mbit Ports
8
10 Gbit SFP+ Ports
4
Switch Properties
MAC Table Size
32000
Jumbo Frame Size
10 kB
Max. Number of VLANs
4095
IGMP Groups
1024
Supported Protocols
Managment Protocols
DHCP Server/Client, SNMPv1/v2c/v3, HTTP, LLDP, Telnet, GVRP, RMON, IGMP Snooping v1/v2/v3, GARP
Reservation protocols
MSTP, STP, RSTP
Security Protocols
HTTPS, SSH, RADIUS, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
12..48 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Protection Level of Chassis
IP30
Dimensions and weight
Width
440 mm
Depth
44 mm
Height
215 mm
Operating Conditions
Operating Temperature
-10..65 °C
Humidity
5-95%
MTBF
195504 h
Dimensions
Net Weight
0.62 kg
Gross Weight
1.2 kg
