R10IH8M-RTT2GP

R10IH8M-RTT2GP

Winmate
SKU: 07007100

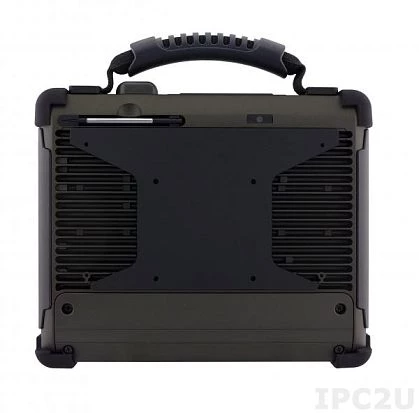

Rugged Tablet IP65 10.4", LCD TFT 1024x768, CPU Intel Core i5 - 5250U 2.2 GHz, Resistive T/S, 1x4GB DDR3L, 64GB mSATA MLC SSD, 2xUSB 3.0, Wi-Fi 802.11 f/b/g/n, GPS, BT, external power adapter 100-240V AC, Windows 10 IoT
End-of-life product
Construction
Construction Chassis
Magnesium Alloy
Protection Level of Front Side (Panel)
IP54
Protection Level of Chassis
IP54
Display
Display Type
LCD TFT
Diagonal
10.4 "
Maximum resolution
1024x768 Dots
Brightness
700 Cd/m2
Touch Screen
Touch Screen Type
Resistive
CPU
Processor Installed
Intel Core i5-5200U
Max CPU frequency
2.7 GHz
Memory
Form-factor
DDR3L
Default on Board Memory
4 GB
Maximum Memory
8 GB
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
2
USB v3.x
2
Drive interfaces
mSATA
1
Installed drive
Drive Type
SSD
Storage Form-Factor
mSATA
1st Storage Capacity
64 GB
Extension Slots
SIM Card slots
Yes
Additional Functions
Camera Frontside
2 MP
Rear Camera
5 MP
GPS
GPS
Barcode Scanner
Optional
Antenna characteristics
Cellular interfaces
3G, 4G
Bluetooth
v4.0
LED / Controls
LED
1xHDD LED, Battеry Status, Power LED, RFID LED
Controls
On/Off, 1xReset, Control Buttons
Connectors
Connectors
DB9, RJ45, 2xUSB, Audio
System Power Input
Input Voltage DC
19..19 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Supported Types of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-ion
Battery Capacity
5200 mA*h
RunTime Battery 1
0 h
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows Embedded Professional 7 (64 bit)
Operating System Installed
Windows Embedded 8.1 Industry
Dimensions and weight
Width
266 mm
Height
220 mm
Depth
50.5 mm
Operating Conditions
Operating Temperature
-20..60 °C
Standards and Certifications
Certifications
CE, FCC
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 515.6 Acoustic Noise
Dimensions
Net Weight
2.39 kg
Gross Weight
3 kg
