R08IH8M-RTU1GP

R08IH8M-RTU1GP

Winmate
SKU: 07007200

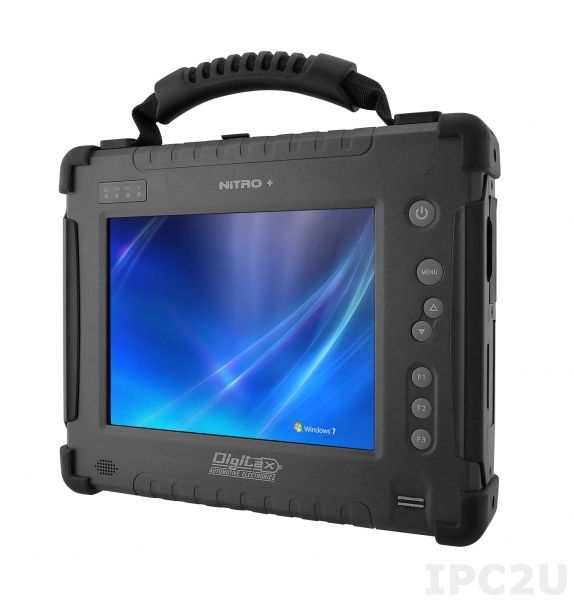

Rugged Tablet 8.4", LCD TFT 800x600, CPU Intel Core i5 - 4200U 1.6 GHz, Resistive T/S, 1x4GB DDR3L, up to 8GB DDR3L, 64GB mSATA MLC SSD, 2xUSB 3.0, Wi-Fi 802.11 f/b/g/n, GPS, external power adapter 100-240V AC, Windows Embedded 8.1 Industry
Price on request
Available
Available

Construction
Construction Chassis
Magnesium Alloy
Protection Level of Front Side (Panel)
IP54
Protection Level of Chassis
IP54
Display
Display Type
LCD TFT
Diagonal
8.4 "
Maximum resolution
800x600 Dots
Brightness
800 Cd/m2
Touch Screen
Touch Screen Type
Resistive
CPU
Processor Installed
Intel Core i5-4200U
Max CPU frequency
2.6 GHz
Memory
Form-factor
DDR3L
Default on Board Memory
4 GB
Maximum Memory
8 GB
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
2
USB v3.x
2
Drive interfaces
mSATA
1
SD Slots
1
Installed drive
Drive Type
SSD
Storage Form-Factor
mSATA
1st Storage Capacity
512 GB
Extension Slots
SIM Card slots
Yes
Additional Functions
GPS
GPS
Antenna characteristics
Cellular interfaces
3G, 4G
Bluetooth
v4.0
LED / Controls
LED
1xHDD LED, Battеry Status, Power LED, RFID LED
Controls
On/Off, 1xReset, Control Buttons
Connectors
Connectors
DB9, RJ45, 2xUSB, Audio
System Power Input
Input Voltage DC
19..19 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Supported Types of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-ion
Battery Capacity
5200 mA*h
RunTime Battery 1
0 h
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows Embedded Professional 7 (64 bit)
Operating System Installed
Windows Embedded 8.1 Industry
Dimensions and weight
Width
266 mm
Height
220 mm
Depth
50.5 mm
Operating Conditions
Operating Temperature
-20..60 °C
Standards and Certifications
Certifications
CE, FCC
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 515.6 Acoustic Noise
Dimensions
Net Weight
2.39 kg
Gross Weight
3 kg
