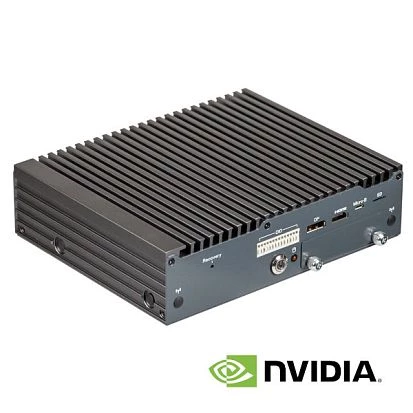

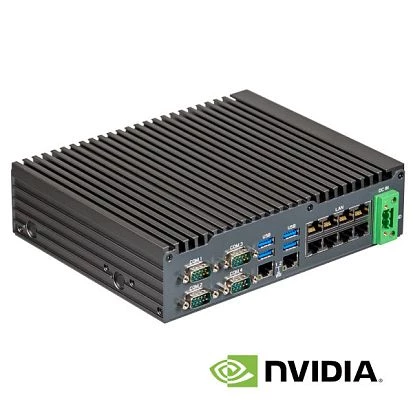

QBiX-Jetson-XavierAHP-A1
GIGAIPC
SKU: 57348000
NVIDIA Xavier NX Fanless Industrial Embedded PC, NVIDIA Carmel Arm v8.2 CPU, 8GB LPDDR4 1600MHz, 2xGbE, 8xGbE PoE total 120W, NVIDIA Volta GPU 48 Tensor Cores, 1xHDMI, 1xDP, 5xUSB, 4xCOM, 1xDIO, 16GB eMMC, SATA 2.5", Mini PCIe, 54V DC, -20..70C
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Embedded, Desktop
Type
Fanless
CPU
Processor Installed
NVIDIA Jetson Xavier NX (6-core ARM v8.2 64-bit CPU, 6MB L2 + 4MB L3)
Memory
Form-factor
DDR4
Default on Board Memory
8 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
NVIDIA Volta GPU, 384-Core, 48 Tensor Cores
Ethernet
Total Ethernet
10
10/100/1000 Mbit/s
2
PoE+ 10/100/1000 Mbit/s
8
Interfaces
COM Total
4
RS-232/422/485
4
USB Total
5
USB 2.0
1
USB v3.x
4
Drive interfaces
SATA 3
1
MicroSD
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Installed drive
Drive Type
SSD
Storage Form-Factor
eMMC
1st Storage Capacity
16 GB
Extension Slots
Total
3
M.2
2
M.2 Form Factor
2230 E, 3052 B
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 1
Antenna characteristics
Cellular interfaces
4G (Optional)
Connectors
Connectors

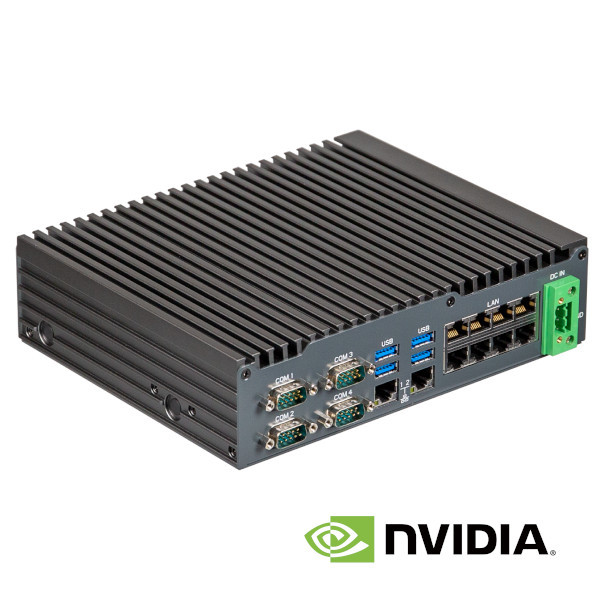

HDMI, 2xRJ45 Ethernet, 4xUSB, Display Port, DC input (terminal block), GPIO (terminal block), 1xMicro USB, SD card slot, 4xDB9 Male, 8xRJ45 Ethernet
System Power Input
Input Voltage DC
54..54 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
180 W
Dimensions and weight
Width
210 mm
Height
55.2 mm
Depth
169.8 mm
Operating Conditions
Operating Temperature
-20..70 °C
Humidity
0-95%
Dimensions
Gross Weight
5 kg
