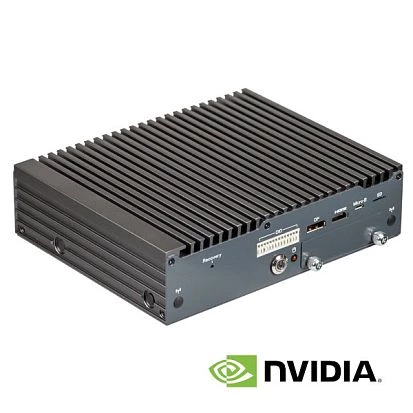

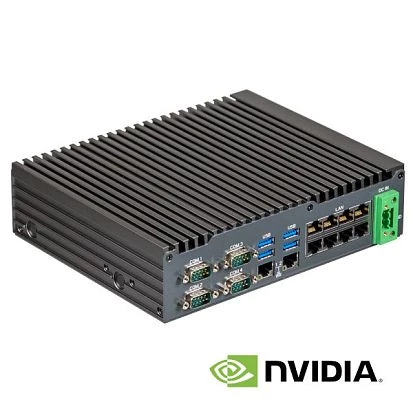

QBiX-Jetson-NanoAHP-A1
GIGAIPC
SKU: 57349800
NVIDIA Jetson Nano Fanless Industrial Embedded PC, Arm Cortex A57 Quad-Core CPU, 4GB LPDDR4 1600MHz, 2xGbE, 8xGbE PoE total 120W, NVIDIA Maxwell GPU 128 CUDA Cores, 1xHDMI, 1xDP, 5xUSB, 4xCOM, 1xDIO, 16GB eMMC, SATA 2.5", Mini PCIe, 54V DC, -20..70C
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Embedded, Desktop
Type
Fanless
CPU
Processor Installed
ARM Cortex A57
Memory
Form-factor
DDR4
Default on Board Memory
4 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
NVIDIA Maxwell with 128 NVIDIA CUDA-core
Ethernet
Total Ethernet
10
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232/422/485
4
USB Total
5
USB 2.0
1
USB v3.x
4
Drive interfaces
MicroSD
1
Extension Slots
Total
3
M.2
2
Mini-PCIe/Mini Card
1
Connectors
Connectors
HDMI, 2xRJ45 Ethernet, 4xUSB, Display Port, DC input (terminal block), GPIO (terminal block), 1xMicro USB, 4xDB9 Male, 8xRJ45 Ethernet
System Power Input
Input Voltage DC
54..54 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
180 W
Dimensions and weight
Width
210 mm
Height
55.2 mm
Depth
169.8 mm
Operating Conditions
Operating Temperature
-20..70 °C
Dimensions
Net Weight
4.3 kg
Gross Weight
5 kg
