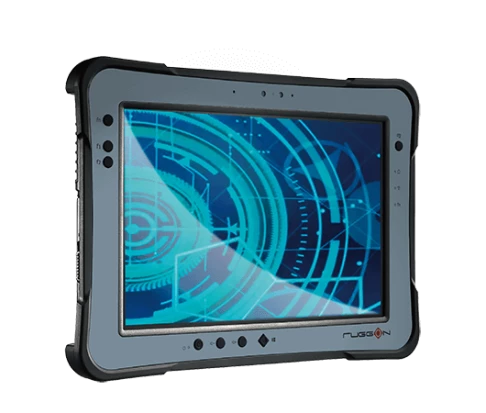

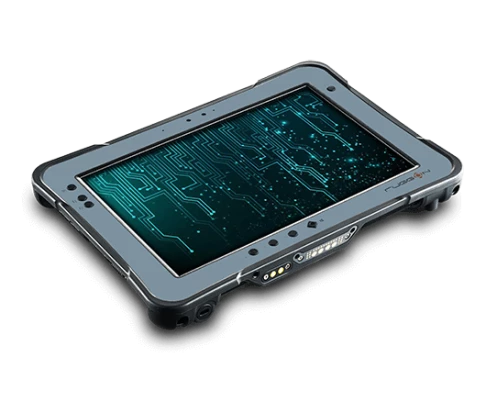

PX-501C

PX-501C

RuggON
SKU: 08098000
Rugget Tablet PC, full IP65, 10.1",1920x1200, Capacitive Touch w/Digitizer, Intel Core i5-7300U 2.6GHz, 8GB DDR3L, 128GB SSD mSATA, 1xRS-232, GNSS, Wi-Fi ac, BT4.0, 2MP/8MP camera, internal 4500mAh battery, IP54 Digitizer Pen ,Win10 Io
Price on request
Available
Available

Construction
Construction Chassis
Rubber
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Type
Fan
Display
Display Type
LCD TFT
Diagonal
10.1 "
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Kaby Lake
Processor Installed
Intel Core i5-7300U
Max CPU frequency
3.5 GHz
Memory
Default on Board Memory
8 GB
Maximum Memory
16 GB
Graphic
Graphic Controller
Intel HD Graphics 620
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Interfaces
COM Total
1
RS-232
1
USB Total
2
Installed drive
1st Storage Capacity
128 GB
Additional Functions
Camera Frontside
2 MP
Rear Camera
8 MP
Connectors
Connectors
DB9, RJ45, Audio, SIM Card Slot, USB type A, USB type C
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
65 W
Battery
Battery 1 Technology
Li-ion
Battery Capacity
4500 mA*h
RunTime Battery 1
12 h
Software
Operating System Compatibility
Windows 10 IoT Enterprise
Operating System Installed
Windows IoT Enterprise 10
Dimensions and weight
Width
280 mm
Height
195 mm
Depth
23 mm
Operating Conditions
Operating Temperature
-20..60 °C
Dimensions
Net Weight
1.36 kg
Gross Weight
2.5 kg
Construction
Construction Chassis
Rubber
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Type
Fan
Display
Display Type
LCD TFT
Diagonal
10.1 "
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Kaby Lake
Processor Installed
Intel Core i5-7300U
Max CPU frequency
3.5 GHz
Memory
Default on Board Memory
8 GB
Maximum Memory
16 GB
Graphic
Graphic Controller
Intel HD Graphics 620
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Interfaces
COM Total
1
RS-232
1
USB Total
2
Installed drive
1st Storage Capacity
128 GB
Additional Functions
Camera Frontside
2 MP
Rear Camera
8 MP
Connectors
Connectors
DB9, RJ45, Audio, SIM Card Slot, USB type A, USB type C
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
65 W
Battery
Battery 1 Technology
Li-ion
Battery Capacity
4500 mA*h
RunTime Battery 1
12 h
Software
Operating System Compatibility
Windows 10 IoT Enterprise
Operating System Installed
Windows IoT Enterprise 10
Dimensions and weight
Width
280 mm
Height
195 mm
Depth
23 mm
Operating Conditions
Operating Temperature
-20..60 °C
Dimensions
Net Weight
1.36 kg
Gross Weight
2.5 kg
Construction
Construction Chassis
Rubber
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Type
Fan
Display
Display Type
LCD TFT
Diagonal
10.1 "
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Kaby Lake
Processor Installed
Intel Core i5-7300U
Max CPU frequency
3.5 GHz
Memory
Default on Board Memory
8 GB
Maximum Memory
16 GB
Graphic
Graphic Controller
Intel HD Graphics 620
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Interfaces
COM Total
1
RS-232
1
USB Total
2
Installed drive
1st Storage Capacity
128 GB
Additional Functions
Camera Frontside
2 MP
Rear Camera
8 MP
Connectors
Connectors
DB9, RJ45, Audio, SIM Card Slot, USB type A, USB type C
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
65 W
Battery
Battery 1 Technology
Li-ion
Battery Capacity
4500 mA*h
RunTime Battery 1
12 h
Software
Operating System Compatibility
Windows 10 IoT Enterprise
Operating System Installed
Windows IoT Enterprise 10
Dimensions and weight
Width
280 mm
Height
195 mm
Depth
23 mm
Operating Conditions
Operating Temperature
-20..60 °C
Dimensions
Net Weight
1.36 kg
Gross Weight
2.5 kg
Construction
Construction Chassis
Rubber
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Type
Fan
Display
Display Type
LCD TFT
Diagonal
10.1 "
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Kaby Lake
Processor Installed
Intel Core i5-7300U
Max CPU frequency
3.5 GHz
Memory
Default on Board Memory
8 GB
Maximum Memory
16 GB
Graphic
Graphic Controller
Intel HD Graphics 620
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Interfaces
COM Total
1
RS-232
1
USB Total
2
Installed drive
1st Storage Capacity
128 GB
Additional Functions
Camera Frontside
2 MP
Rear Camera
8 MP
Connectors
Connectors
DB9, RJ45, Audio, SIM Card Slot, USB type A, USB type C
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
65 W
Battery
Battery 1 Technology
Li-ion
Battery Capacity
4500 mA*h
RunTime Battery 1
12 h
Software
Operating System Compatibility
Windows 10 IoT Enterprise
Operating System Installed
Windows IoT Enterprise 10
Dimensions and weight
Width
280 mm
Height
195 mm
Depth
23 mm
Operating Conditions
Operating Temperature
-20..60 °C
Dimensions
Net Weight
1.36 kg
Gross Weight
2.5 kg

Documentation
RuggON_rugged_tablet_PX501G3_specsheet_V22A.pdf
Documentation
RuggON_rugged_tablet_PX501G3_specsheet_V22A.pdf
Documentation
RuggON_rugged_tablet_PX501G3_specsheet_V22A.pdf
Documentation
RuggON_rugged_tablet_PX501G3_specsheet_V22A.pdf
