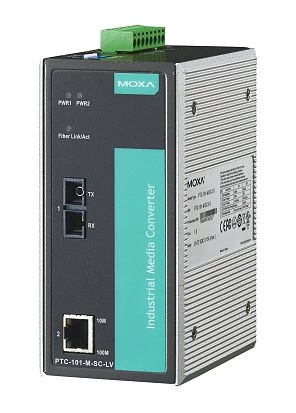

PTC-101-M-SC-LV
MOXA
SKU: 05596500
Industrial 10/100BaseT(X) to 100BaseFX media converter, multi-mode with SC connector, dual redundant power inputs (20-70 VDC), -40 to 85°C operating temperature
Price on request
Available
Available
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Type 10/100 Mbit/s
RJ-45, SC
Fiber
Type of Fibre Optic
multi-mode
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
1A@24V DC
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX
Switch Properties
Supported functions
Automatic power failure notification, Link Fault Pass-Through (LFP)
LED / Controls
LED
10/100M LED, PWR1, PWR2, LNK/ACT LED
Setup of Operation Mode
By Switches
System Power Input
Input Voltage DC
20..72 V
Power Supply Reserve input Voltage DC
20..72 V
Operating Conditions
Operating Temperature
-40..85 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
152 mm
Depth
67 mm
Height
123 mm
Standards and Certifications
Certifications
CE, WEEE, FCC
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, EN 55032
Freefall
IEC 60068-2-32
Power Automation
IEC 61850-3, IEEE 1613
Rolling Stock
EN 50121-4, EN 50155
Safety
UL 60950-1
Vibration And Shock
IEC 61850-3, IEC 60870-2-2
Dimensions
Net Weight
1 kg
Gross Weight
1 kg
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Type 10/100 Mbit/s
RJ-45, SC
Fiber
Type of Fibre Optic
multi-mode
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
1A@24V DC
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX
Switch Properties
Supported functions
Automatic power failure notification, Link Fault Pass-Through (LFP)
LED / Controls
LED
10/100M LED, PWR1, PWR2, LNK/ACT LED
Setup of Operation Mode
By Switches
System Power Input
Input Voltage DC
20..72 V
Power Supply Reserve input Voltage DC
20..72 V
Operating Conditions
Operating Temperature
-40..85 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
152 mm
Depth
67 mm
Height
123 mm
Standards and Certifications
Certifications
CE, WEEE, FCC
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, EN 55032
Freefall
IEC 60068-2-32
Power Automation
IEC 61850-3, IEEE 1613
Rolling Stock
EN 50121-4, EN 50155
Safety
UL 60950-1
Vibration And Shock
IEC 61850-3, IEC 60870-2-2
Dimensions
Net Weight
1 kg
Gross Weight
1 kg
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Type 10/100 Mbit/s
RJ-45, SC
Fiber
Type of Fibre Optic
multi-mode
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
1A@24V DC
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX
Switch Properties
Supported functions
Automatic power failure notification, Link Fault Pass-Through (LFP)
LED / Controls
LED
10/100M LED, PWR1, PWR2, LNK/ACT LED
Setup of Operation Mode
By Switches
System Power Input
Input Voltage DC
20..72 V
Power Supply Reserve input Voltage DC
20..72 V
Operating Conditions
Operating Temperature
-40..85 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
152 mm
Depth
67 mm
Height
123 mm
Standards and Certifications
Certifications
CE, WEEE, FCC
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, EN 55032
Freefall
IEC 60068-2-32
Power Automation
IEC 61850-3, IEEE 1613
Rolling Stock
EN 50121-4, EN 50155
Safety
UL 60950-1
Vibration And Shock
IEC 61850-3, IEC 60870-2-2
Dimensions
Net Weight
1 kg
Gross Weight
1 kg
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Type 10/100 Mbit/s
RJ-45, SC
Fiber
Type of Fibre Optic
multi-mode
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
1A@24V DC
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX
Switch Properties
Supported functions
Automatic power failure notification, Link Fault Pass-Through (LFP)
LED / Controls
LED
10/100M LED, PWR1, PWR2, LNK/ACT LED
Setup of Operation Mode
By Switches
System Power Input
Input Voltage DC
20..72 V
Power Supply Reserve input Voltage DC
20..72 V
Operating Conditions
Operating Temperature
-40..85 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
152 mm
Depth
67 mm
Height
123 mm
Standards and Certifications
Certifications
CE, WEEE, FCC
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, EN 55032
Freefall
IEC 60068-2-32
Power Automation
IEC 61850-3, IEEE 1613
Rolling Stock
EN 50121-4, EN 50155
Safety
UL 60950-1
Vibration And Shock
IEC 61850-3, IEC 60870-2-2
Dimensions
Net Weight
1 kg
Gross Weight
1 kg
