PQ7-M105IT-1600-2048

PQ7-M105IT-1600-2048

Portwell
SKU: 06079100

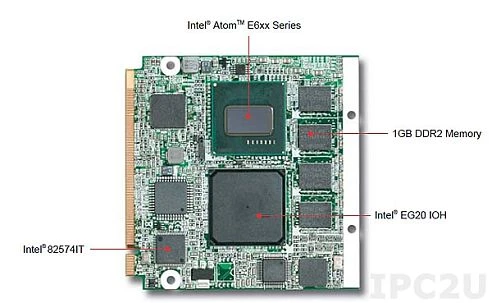

Intel Atom E680T 1.6GHz Processor based Qseven module with 2GB DDR2 SDRAM, LVDS, 82574IT, 4xPCIe x1, CAN Bus
End-of-life product

System Architecture
Form Factor
Q7 CPU Module
Construction
Type
Fanless
CPU
Processor Installed
Intel Atom E680T
Max CPU frequency
1.6 GHz
Chipset
Chipset
Intel EG20T
Memory
Form-factor
DDR2
Socket Type
Soldered
ECC
No
Default on Board Memory
2 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Intel GMA 600
Interfaces
LVDS, SDVO
Ethernet
Controller Type
Intel 82574IT 10/100/1000 Mbps
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
USB Total
7
USB 2.0
7
Audio
Audio Controller
Intel HD Audio
Extension Slots
Total
4
PCI Express x1
4
Dimensions and weight
Width
70 mm
Length
70 mm
Operating Conditions
Operating Temperature
-40..80 °C
Dimensions
Net Weight
0.7 kg
Gross Weight
1.1 kg

Documentation
PQ7-M105IT

Request for replacement

Portwell
SKU: 06079100
PQ7-M105IT-1600-2048
