PBQ-3000

PBQ-3000

Arbor
SKU: 57983000

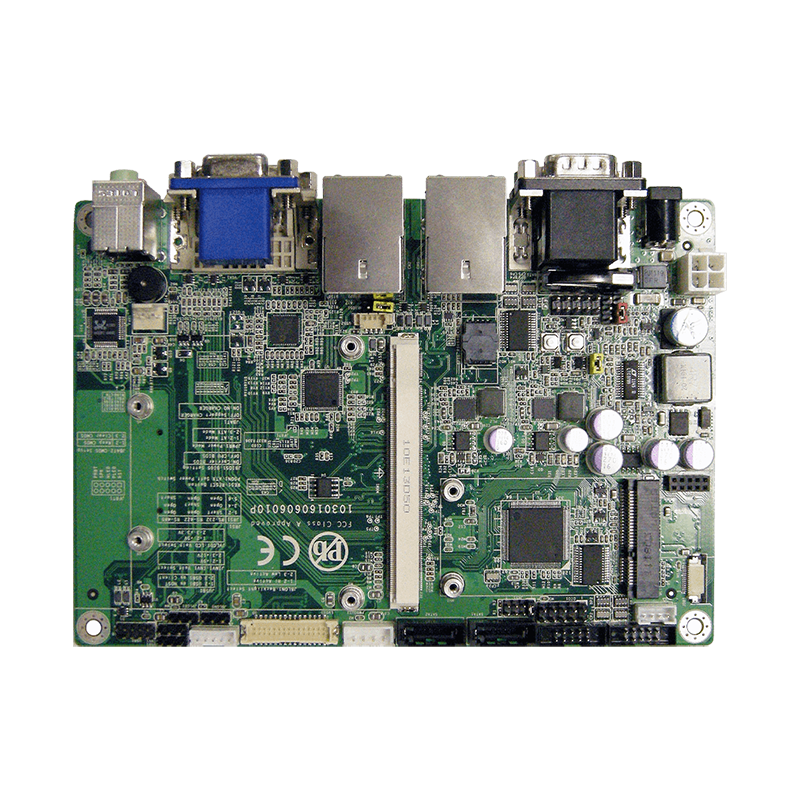

Qseven Base Board, Single 24-bit LVDS/Dual 24-bit LVDS/VGA/DVI, 4xCOM, 7xUSB 2.0, 2xGbE LAN, 8-bit DIO, 1xMini-Card, 2xSATA, Audio, 10-30VDC-in Wide Range
Price on request
Available
Available

System Architecture
Form Factor
EPIC
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DVI-D, LVDS, VGA, 2xLVDS 24 bit
Ethernet
Controller Type
Intel 82583V 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
3
RS-232/422/485
1
USB Total
7
USB 2.0
7
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Realtek ALC662
Drive interfaces
SATA 2
2
Extension Slots
Mini-PCIe/Mini Card
1
Connectors
Connectors
4-pin ATX, 2xDB9, DVI-D, DB15 VGA, 2xRJ45 Ethernet, 4xUSB, Audio (in/out/Mic), DC Input
Dimensions and weight
Width
115 mm
Length
165 mm
Operating Conditions
Operating Temperature
-20..70 °C
Humidity
10-90%
Dimensions
Net Weight
0.5 kg
Gross Weight
0.8 kg
System Architecture
Form Factor
EPIC
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DVI-D, LVDS, VGA, 2xLVDS 24 bit
Ethernet
Controller Type
Intel 82583V 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
3
RS-232/422/485
1
USB Total
7
USB 2.0
7
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Realtek ALC662
Drive interfaces
SATA 2
2
Extension Slots
Mini-PCIe/Mini Card
1
Connectors
Connectors
4-pin ATX, 2xDB9, DVI-D, DB15 VGA, 2xRJ45 Ethernet, 4xUSB, Audio (in/out/Mic), DC Input
Dimensions and weight
Width
115 mm
Length
165 mm
Operating Conditions
Operating Temperature
-20..70 °C
Humidity
10-90%
Dimensions
Net Weight
0.5 kg
Gross Weight
0.8 kg
System Architecture
Form Factor
EPIC
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DVI-D, LVDS, VGA, 2xLVDS 24 bit
Ethernet
Controller Type
Intel 82583V 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
3
RS-232/422/485
1
USB Total
7
USB 2.0
7
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Realtek ALC662
Drive interfaces
SATA 2
2
Extension Slots
Mini-PCIe/Mini Card
1
Connectors
Connectors
4-pin ATX, 2xDB9, DVI-D, DB15 VGA, 2xRJ45 Ethernet, 4xUSB, Audio (in/out/Mic), DC Input
Dimensions and weight
Width
115 mm
Length
165 mm
Operating Conditions
Operating Temperature
-20..70 °C
Humidity
10-90%
Dimensions
Net Weight
0.5 kg
Gross Weight
0.8 kg
System Architecture
Form Factor
EPIC
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DVI-D, LVDS, VGA, 2xLVDS 24 bit
Ethernet
Controller Type
Intel 82583V 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
3
RS-232/422/485
1
USB Total
7
USB 2.0
7
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Realtek ALC662
Drive interfaces
SATA 2
2
Extension Slots
Mini-PCIe/Mini Card
1
Connectors
Connectors
4-pin ATX, 2xDB9, DVI-D, DB15 VGA, 2xRJ45 Ethernet, 4xUSB, Audio (in/out/Mic), DC Input
Dimensions and weight
Width
115 mm
Length
165 mm
Operating Conditions
Operating Temperature
-20..70 °C
Humidity
10-90%
Dimensions
Net Weight
0.5 kg
Gross Weight
0.8 kg

Documentation
PBQ-3000-Datasheet.pdf
Documentation
PBQ-3000-Datasheet.pdf
Documentation
PBQ-3000-Datasheet.pdf
Documentation
PBQ-3000-Datasheet.pdf

Get a Quote

Arbor
SKU: 57983000
PBQ-3000
