VDX3-Q7-55E

VDX3-Q7-55E

ICOP
SKU: 80074800

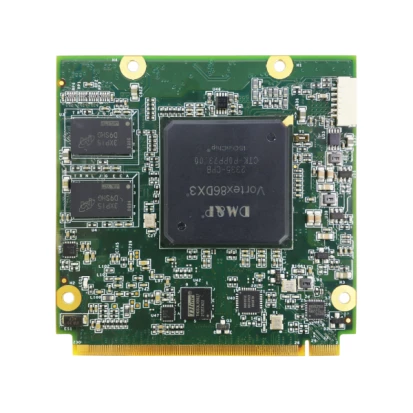

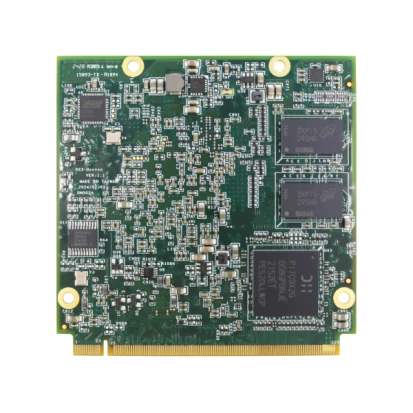

Qseven CPU Module, Vortex86DX3 800MHz SoC, 2GB DDR3 RAM, HDMI/LVDS, 1xGbE LAN, 1xCOM, 7xUSB 2.0, Audio, 8-bit GPIO, SPI, I2C, SATA, SD, Audio, 4xPCIe Gen1
Price on request
Available
Available

System Architecture
Form Factor
Q7 CPU Module
CPU
Processor Installed
Vortex86DX3
Socket
CPU onboard
Max CPU frequency
800 GHz
Chipset
Chipset
SoC
Memory
Form-factor
DDR3
Socket Type
Soldered
ECC
No
Default on Board Memory
2 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Realtek RTL8111F 10/100/1000 Mbps
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
RS-232
1
USB Total
7
USB 2.0
7
Digital Input-Output
Channels of DIO
8
Drive interfaces
SATA 3
1
SD Slots
1
Extension Slots
Total
1
PCI Express x4
1
Software
Operating System Compatibility
Windows Embedded Compact 7, Windows 7, Windows Embedded Standard 7, Linux OS
Dimensions and weight
Width
70 mm
Length
70 mm
Operating Conditions
Operating Temperature
-20..70 °C
Humidity
10-90%
Dimensions
Net Weight
0.06 kg
Gross Weight
0.06 kg
