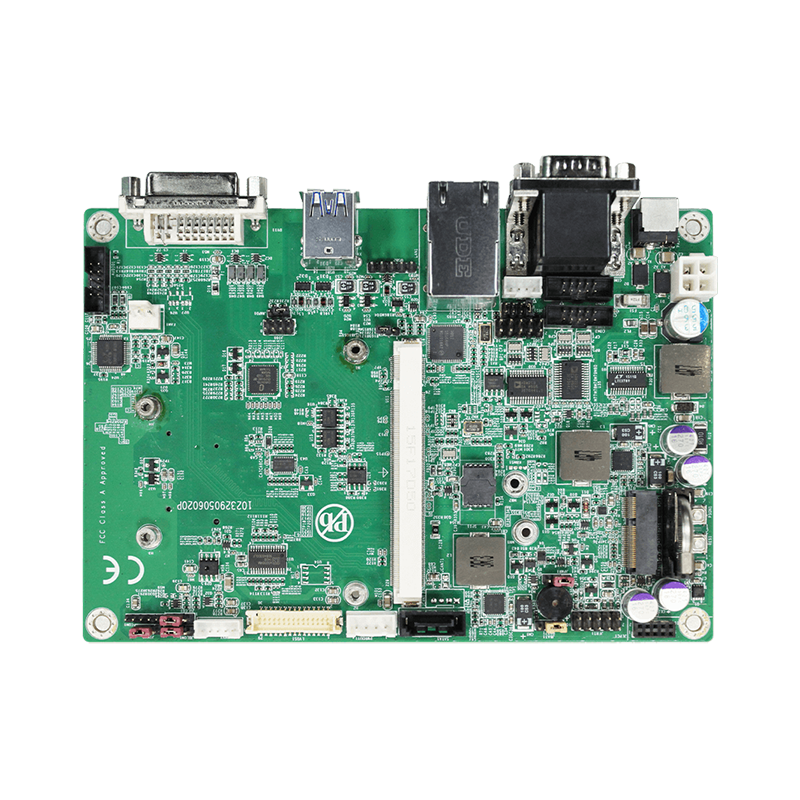

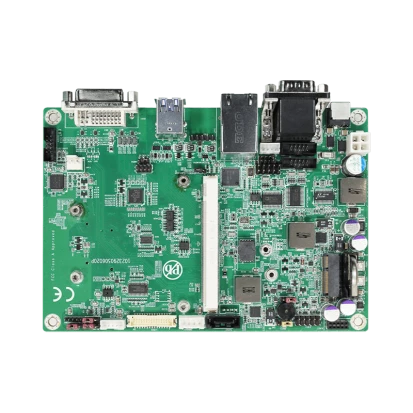

PBQ-900L
Arbor
SKU: 57983200
Qseven R2.0 Carrier Board EPIC form factor, Fintek F81866D-I Super IO, Dual 24-bit LVDS/DVI, 4xCOM, 1xUART, 1xUSB 2.0, 2xUSB 3.0, 2xGbE LAN, 8-bit DIO, 1xSD slot, 1xM.2 2230 Key-E, 1xM.2 2280 Key-M, 1xSATA, Audio, 10-30VDC-in, Wide Range, -40..85
Price on request
Available
Available
System Architecture
Form Factor
EPIC
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DVI-I, 2xLVDS 24 bit
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
3
RS-232/422/485
1
USB Total
3
USB 2.0
1
USB v3.x
2
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Realtek ALC662
Drive interfaces
SATA 2
1
M.2
1
SD Slots
1
Extension Slots
M.2
2
M.2 Form Factor
2280 M, 2230 E
Connectors
Connectors
4-pin ATX, 2xDB9, DVI-I, 2xRJ45 Ethernet, 2xUSB, DC Input
Dimensions and weight
Width
115 mm
Length
165 mm
Operating Conditions
Operating Temperature
-40..85 °C
Humidity
10-95%
Dimensions
Net Weight
0.5 kg
Gross Weight
0.8 kg
System Architecture
Form Factor
EPIC
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DVI-I, 2xLVDS 24 bit
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
3
RS-232/422/485
1
USB Total
3
USB 2.0
1
USB v3.x
2
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Realtek ALC662
Drive interfaces
SATA 2
1
M.2
1
SD Slots
1
Extension Slots
M.2
2
M.2 Form Factor
2280 M, 2230 E
Connectors
Connectors
4-pin ATX, 2xDB9, DVI-I, 2xRJ45 Ethernet, 2xUSB, DC Input
Dimensions and weight
Width
115 mm
Length
165 mm
Operating Conditions
Operating Temperature
-40..85 °C
Humidity
10-95%
Dimensions
Net Weight
0.5 kg
Gross Weight
0.8 kg
System Architecture
Form Factor
EPIC
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DVI-I, 2xLVDS 24 bit
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
3
RS-232/422/485
1
USB Total
3
USB 2.0
1
USB v3.x
2
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Realtek ALC662
Drive interfaces
SATA 2
1
M.2
1
SD Slots
1
Extension Slots
M.2
2
M.2 Form Factor
2280 M, 2230 E
Connectors
Connectors
4-pin ATX, 2xDB9, DVI-I, 2xRJ45 Ethernet, 2xUSB, DC Input
Dimensions and weight
Width
115 mm
Length
165 mm
Operating Conditions
Operating Temperature
-40..85 °C
Humidity
10-95%
Dimensions
Net Weight
0.5 kg
Gross Weight
0.8 kg
System Architecture
Form Factor
EPIC
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DVI-I, 2xLVDS 24 bit
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
3
RS-232/422/485
1
USB Total
3
USB 2.0
1
USB v3.x
2
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Realtek ALC662
Drive interfaces
SATA 2
1
M.2
1
SD Slots
1
Extension Slots
M.2
2
M.2 Form Factor
2280 M, 2230 E
Connectors
Connectors
4-pin ATX, 2xDB9, DVI-I, 2xRJ45 Ethernet, 2xUSB, DC Input
Dimensions and weight
Width
115 mm
Length
165 mm
Operating Conditions
Operating Temperature
-40..85 °C
Humidity
10-95%
Dimensions
Net Weight
0.5 kg
Gross Weight
0.8 kg
