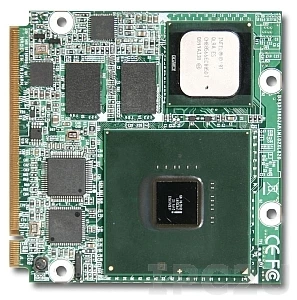

PQ7-M102XL-1100-1024

PQ7-M102XL-1100-1024

Portwell
SKU: 05873600
Intel Atom Z510PT 1.1GHz Processor based Qseven module with 1GB DDR2 SDRAM, 82574IT, LVDS, Gigabit Ethernet, SDVO, 2xSATA
End-of-life product

System Architecture
Form Factor
Q7 CPU Module
Construction
Type
Fanless
CPU
Processor Installed
Intel Atom Z510PT
Max CPU frequency
1.1 GHz
Chipset
Chipset
Intel US15WPT
Memory
Form-factor
DDR2
Socket Type
Soldered
ECC
No
Default on Board Memory
1 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Intel US15WPT
Interfaces
LVDS, SDVO
Ethernet
Controller Type
Intel 82574IT 10/100/1000 Mbps
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
USB Total
8
USB 2.0
8
Audio
Audio Controller
Intel HD Audio
Extension Slots
Total
1
PCI Express x1
1
Additional Functions
Watchdog timer type
Software
Dimensions and weight
Width
70 mm
Length
70 mm
Operating Conditions
Operating Temperature
-40..85 °C
Dimensions
Net Weight
0.7 kg
Gross Weight
1.1 kg

Documentation
PQ7-M102XL

Request for replacement

Portwell
SKU: 05873600
PQ7-M102XL-1100-1024
