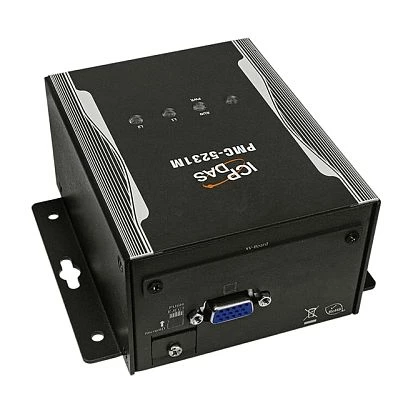

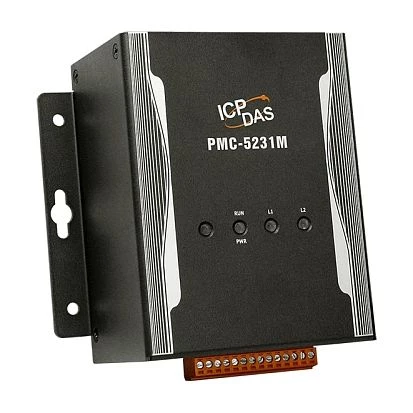

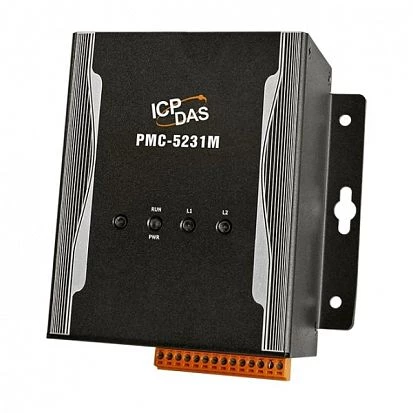

PMC-5231M
ICP DAS
SKU: 09113200
Industrial IoT Power Meter Concentrator (Metal Case) (RoHS)
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Wall
CPU
Processor Installed
ARM Cortex
Max CPU frequency
1 GHz
Memory
Default on Board Memory
0.25 GB
Installed drive
Flash Memory Capacity
256 MB
EEPROM Memory Capacity
16 kB
1st Storage Capacity
4 GB
Drive interfaces
MicroSD
1
MicroSDHC
1
Expansion Module
Quantity of Slots
1
Supported Module
XV - board
Software
Programming Method
IF-THEN-ELSE Logic Rules, C/C++
Development Software
Embedded Visual C++, Visual Studio .NET
Ethernet
10/100/1000 Mbit/s
1
Interfaces
COM Total
3
RS-232
1
RS-485
2
USB Total
1
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus RTU slave, MQTT client
Connectors
Connectors
DB15 VGA, RJ45 Ethernet, 1xUSB, SIM Card Slot, Screw Terminal, MicroSD card slot
Graphic
Interfaces
VGA
Dimensions and weight
Width
117 mm
Depth
58 mm
Height
126 mm
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
Certifications
CE/FCC
Dimensions
Gross Weight
1 kg
