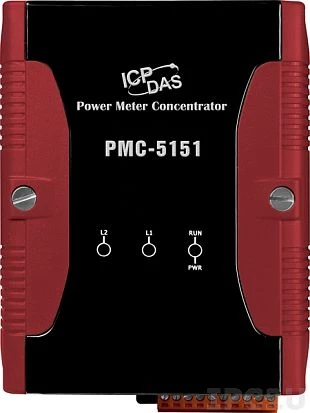

PMC-5151-EN
ICP DAS
SKU: 66379600
Power Meter Concentrator ( English ) (RoHS)
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
CPU
Processor Installed
Intel PXA270
Max CPU frequency
0.52 GHz
Memory
Default on Board Memory
0.13 GB
Installed drive
Flash Memory Capacity
64 MB
EEPROM Memory Capacity
16 kB
1st Storage Capacity
4 GB
Drive interfaces
MicroSD
1
MicroSDHC
1
Expansion Module
Quantity of Slots
1
Supported Module
XW - board
Software
Operating System Installed
Windows CE 5.0
Programming Method
IF-THEN-ELSE Logic Rules, C/C++
Development Software
Embedded Visual C++, Visual Studio .NET
Ethernet
10/100 Mbit/s
2
Interfaces
COM Total
3
RS-232
1
RS-485
2
USB Total
1
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
Modbus TCP client, Modbus RTU master
Graphic
Interfaces
VGA
Dimensions and weight
Width
91 mm
Depth
52 mm
Height
126 mm
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Gross Weight
1 kg
