PMD-4201-EN
ICP DAS
SKU: 07548800

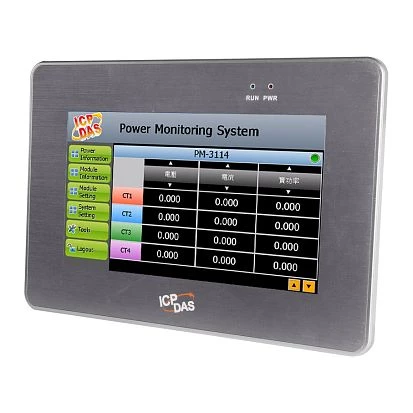

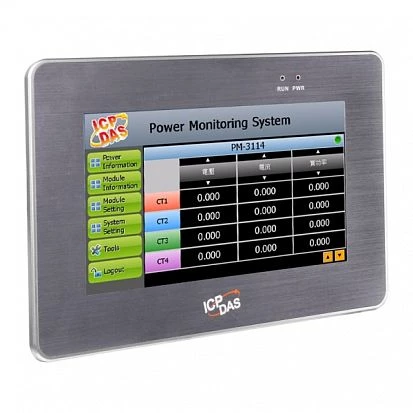

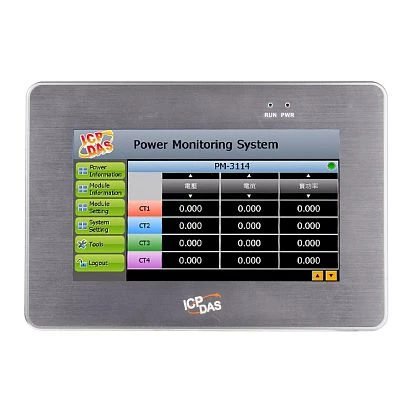

10.4" TFT LCD Power Meter Concentrator with Display (English) (RoHS)
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel
Protection Level of Chassis
IP65, NEMA4
Display
Display Type
LCD TFT
Diagonal
10.4 "
Maximum resolution
800x600 Dots
CPU
Processor Installed
ARM Cortex
Max CPU frequency
1 GHz
Memory
Default on Board Memory
0.5 GB
Installed drive
Flash Memory Capacity
256 MB
Drive interfaces
SD Slots
1
Software
Operating System Installed
Windows CE 5.0
Programming Method
IF-THEN-ELSE Logic Rules
Ethernet
10/100/1000 Mbit/s
1
Interfaces
COM Total
3
RS-485
3
USB Total
2
Supported Protocols
Industrial Protocols
Modbus TCP client, Modbus RTU master
Dimensions and weight
Width
291 mm
Depth
54 mm
Height
229 mm
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-10..60 °C
Dimensions
Net Weight
1.8 kg
Gross Weight
2 kg
