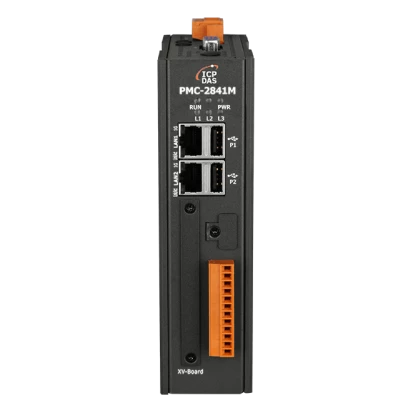

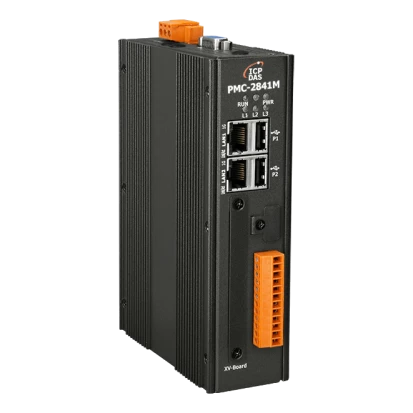

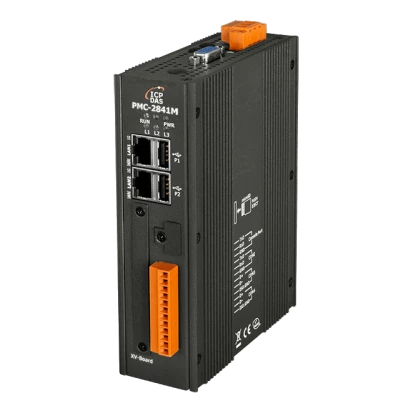

PMC-2841M

ICP DAS
SKU: 11637000
Advanced Industrial IoT Power Meter Concentrator, 12-48VDC-in
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
CPU
Processor Installed
ARM Cortex
Max CPU frequency
1.6 GHz
Memory
Default on Board Memory
2 GB
Installed drive
Flash Memory Capacity
8 MB
Drive interfaces
MicroSD
4
Expansion Module
Supported Module
XV - board
Software
Programming Method
IF-THEN-ELSE Logic Rules
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-485
2
USB Total
2
Supported Protocols
Industrial Protocols
Modbus TCP, Modbus RTU, MQTT client
Security Protocols
VPN
Managment Protocols
SNMP, DDNS, SNTP, FTP, SNMP Trap
Connectors
Connectors
4xCOM (terminal block)
Graphic
Interfaces
VGA
Dimensions and weight
Width
42 mm
Depth
129 mm
Height
165 mm
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-25..75 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
0.3 kg
Gross Weight
0.6 kg
