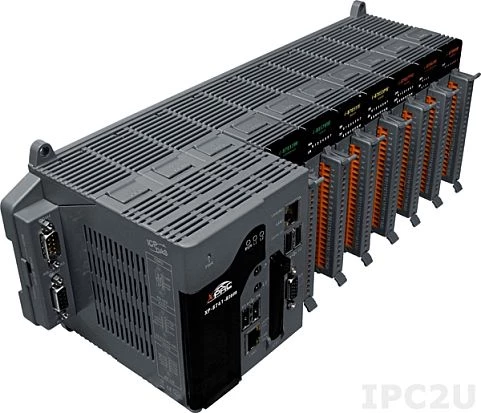

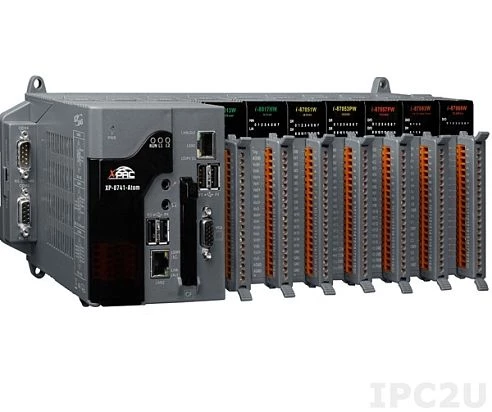

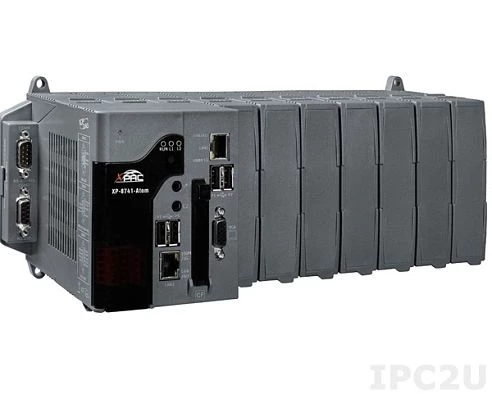

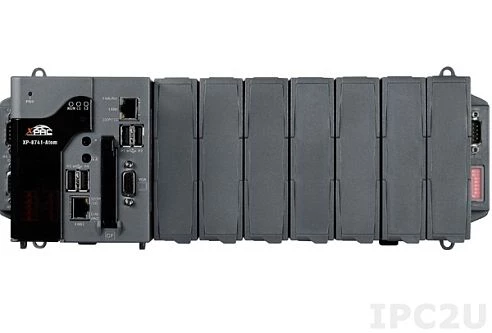

XP-8741-Atom
ICP DAS
SKU: 05833600
PC-compatible Intel Atom Z520 1.33 GHz Industrial Controller, 8Gb Flash, 1Gb RAM, 3xRS-232, 1xRS-485, 2xEthernet, Win XP Emb, with 7 Expansion Slot
End-of-life product
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
CPU
Processor Installed
Intel Atom Z520
Max CPU frequency
1.33 GHz
Memory
Default on Board Memory
1 GB
SRAM
512 kB
Installed drive
Flash Memory Capacity
8 MB
EEPROM Memory Capacity
16 kB
1st Storage Capacity
16 GB
Drive interfaces
CompactFlash Slots
1
Expansion Module
Quantity of Slots
7
Supported Module
I-8K series, I-87K series
Software
Operating System Installed
Windows Embedded Standard 2009
Programming Method
C/C++
Development Software
BCB, Delphi, Visual Studio .NET, VC, VB
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-485
1
RS-232/485
1
USB Total
4
Additional Functions
Watchdog timer type
Hardware, Software
Graphic
Interfaces
VGA
Dimensions and weight
Width
355 mm
Depth
132 mm
Height
125 mm
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Gross Weight
1.81 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
CPU
Processor Installed
Intel Atom Z520
Max CPU frequency
1.33 GHz
Memory
Default on Board Memory
1 GB
SRAM
512 kB
Installed drive
Flash Memory Capacity
8 MB
EEPROM Memory Capacity
16 kB
1st Storage Capacity
16 GB
Drive interfaces
CompactFlash Slots
1
Expansion Module
Quantity of Slots
7
Supported Module
I-8K series, I-87K series
Software
Operating System Installed
Windows Embedded Standard 2009
Programming Method
C/C++
Development Software
BCB, Delphi, Visual Studio .NET, VC, VB
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-485
1
RS-232/485
1
USB Total
4
Additional Functions
Watchdog timer type
Hardware, Software
Graphic
Interfaces
VGA
Dimensions and weight
Width
355 mm
Depth
132 mm
Height
125 mm
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Gross Weight
1.81 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
CPU
Processor Installed
Intel Atom Z520
Max CPU frequency
1.33 GHz
Memory
Default on Board Memory
1 GB
SRAM
512 kB
Installed drive
Flash Memory Capacity
8 MB
EEPROM Memory Capacity
16 kB
1st Storage Capacity
16 GB
Drive interfaces
CompactFlash Slots
1
Expansion Module
Quantity of Slots
7
Supported Module
I-8K series, I-87K series
Software
Operating System Installed
Windows Embedded Standard 2009
Programming Method
C/C++
Development Software
BCB, Delphi, Visual Studio .NET, VC, VB
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-485
1
RS-232/485
1
USB Total
4
Additional Functions
Watchdog timer type
Hardware, Software
Graphic
Interfaces
VGA
Dimensions and weight
Width
355 mm
Depth
132 mm
Height
125 mm
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Gross Weight
1.81 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
CPU
Processor Installed
Intel Atom Z520
Max CPU frequency
1.33 GHz
Memory
Default on Board Memory
1 GB
SRAM
512 kB
Installed drive
Flash Memory Capacity
8 MB
EEPROM Memory Capacity
16 kB
1st Storage Capacity
16 GB
Drive interfaces
CompactFlash Slots
1
Expansion Module
Quantity of Slots
7
Supported Module
I-8K series, I-87K series
Software
Operating System Installed
Windows Embedded Standard 2009
Programming Method
C/C++
Development Software
BCB, Delphi, Visual Studio .NET, VC, VB
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-485
1
RS-232/485
1
USB Total
4
Additional Functions
Watchdog timer type
Hardware, Software
Graphic
Interfaces
VGA
Dimensions and weight
Width
355 mm
Depth
132 mm
Height
125 mm
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Gross Weight
1.81 kg
