PMC-1000S

PMC-1000S

CTC Union
SKU: 57590300

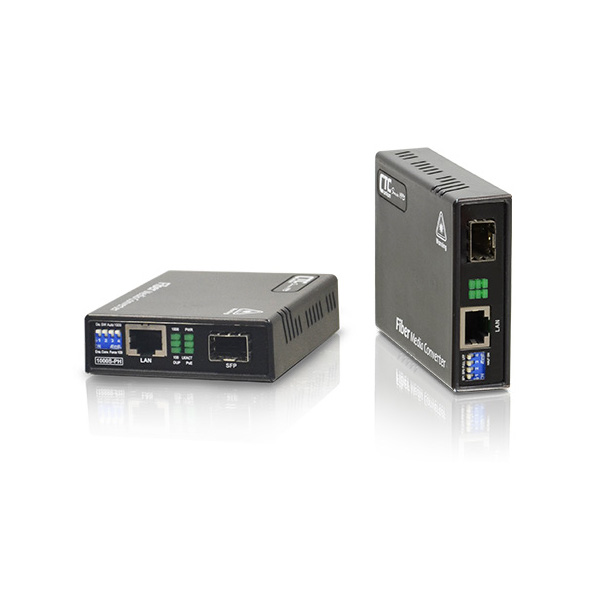

Media Converter 10/100/1000BASE-T to 100/1000BASE-X SFP with PoE+, 48..57V DC, 0..50 C
Price on request
Available
Available
Ethernet
10/100/1000 Mbit/s
1
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
LED / Controls
LED
Power LED, PoE LED, LNK/ACT LED
Construction
Construction Chassis
Plastic Chassis
Dimensions and weight
Width
108 mm
Depth
74 mm
Height
23 mm
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
0.14 kg
Gross Weight
0.2 kg
Ethernet
10/100/1000 Mbit/s
1
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
LED / Controls
LED
Power LED, PoE LED, LNK/ACT LED
Construction
Construction Chassis
Plastic Chassis
Dimensions and weight
Width
108 mm
Depth
74 mm
Height
23 mm
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
0.14 kg
Gross Weight
0.2 kg
Ethernet
10/100/1000 Mbit/s
1
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
LED / Controls
LED
Power LED, PoE LED, LNK/ACT LED
Construction
Construction Chassis
Plastic Chassis
Dimensions and weight
Width
108 mm
Depth
74 mm
Height
23 mm
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
0.14 kg
Gross Weight
0.2 kg
Ethernet
10/100/1000 Mbit/s
1
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
LED / Controls
LED
Power LED, PoE LED, LNK/ACT LED
Construction
Construction Chassis
Plastic Chassis
Dimensions and weight
Width
108 mm
Depth
74 mm
Height
23 mm
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
0.14 kg
Gross Weight
0.2 kg
Documentation
PMC-1000S-Datasheet.pdf
Documentation
PMC-1000S-Datasheet.pdf
Documentation
PMC-1000S-Datasheet.pdf
Documentation
PMC-1000S-Datasheet.pdf

Get a Quote

PMC-1000S
CTC Union
SKU: 57590300
PMC-1000S
