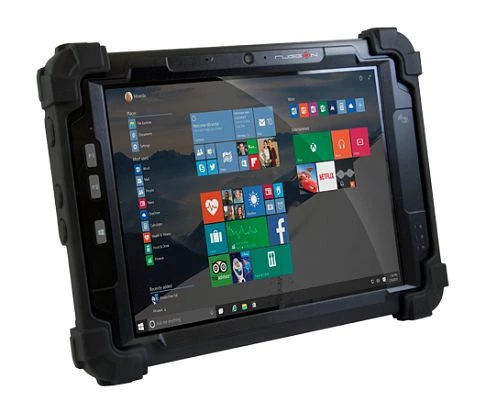

PM-522

PM-522

RuggON
SKU: 07084400
Industrial Tablet PC/ full IP65/10.4" 1024x768/ capacitive touch / Intel Atom E3827 1.5 GHz, 4GB DDR3L/64GB SSD mSATA/2xUSB/ Wi-Fi ac/BT4.0/1.2MP/5MP camera/Sim/ external power adapter 100-240V AC /Windows 10
End-of-life product

Construction
Construction Chassis
Rubber
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Type
Fanless
Display
Diagonal
10.4 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
350 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Atom E3827
Max CPU frequency
1.75 GHz
Memory
Form-factor
DDR3L
Default on Board Memory
4 GB
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Interfaces
USB Total
2
USB 2.0
1
USB v3.x
1
Drive interfaces
mSATA
1
Installed drive
Drive Type
SSD
Storage Form-Factor
mSATA
1st Storage Capacity
64 GB
Extension Slots
SIM Card slots
Micro-SIM
Additional Functions
Camera Frontside
2 MP
Rear Camera
5 MP
GPS
GPS
Barcode Scanner
Optional
Smart Card Reader
Optional
NFC
No
Sensors
Light Sensor, G-sensor, Gyroscope, Accelerometer
Antenna characteristics
Cellular interfaces
3G, 4G
Bluetooth
v4.0
LED / Controls
Controls
On/Off, Control Buttons, Function Keys, Volume Keys
Connectors
Connectors
2xUSB, Audio (in/out/Mic), Micro-SIM card slot
Docking Station
Yes
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
65 W
Supported Types of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Battery
Battery Capacity
3800 mA*h
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows Embedded Standard 8, Windows 7 Professional, Windows Embedded 8.1 Industry
Operating System Installed
Windows 10
Dimensions and weight
Width
275 mm
Height
204 mm
Depth
27 mm
Operating Conditions
Operating Temperature
-20..50 °C
Standards and Certifications
Certifications
CE, FCC
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock, MIL-STD-810G Test Method 516.4 Drop 120 cm
Dimensions
Gross Weight
3 kg
