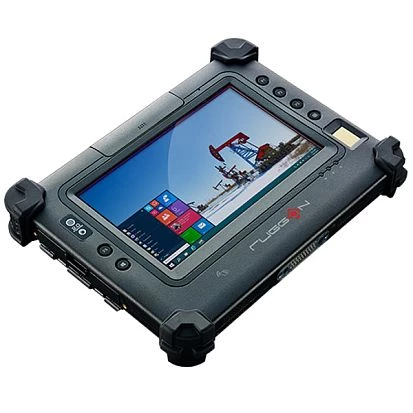

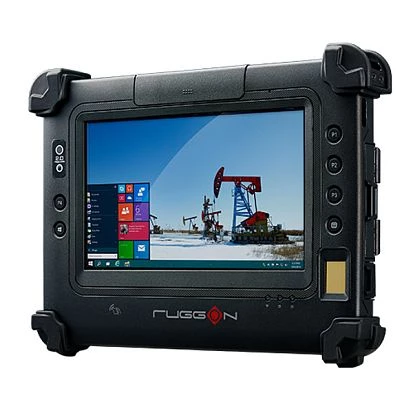

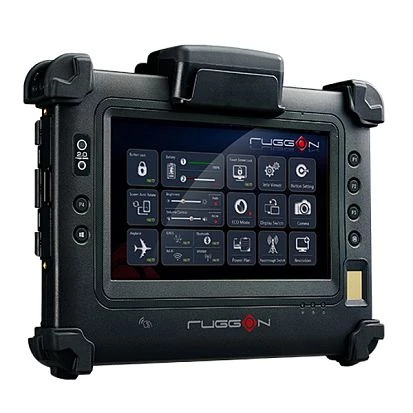

PM-311B

PM-311B

RuggON
SKU: 56241100
Rugged Tablet, lIntel N2930 1.83GHz, 4GB RAM, 128G SSD,7" 1024x600, 1000 nits high brightness capacitive touch, Windows 10 IoT Enterprise (64bit, Multi-language)BT4.0, Wi-Fi a/b/g/n/ac, 2MP/8MP camera, GNSS, NFCPower cord, power adatpr, stylus only(
Price on request
Available
Available

HDD/SSD
Price with VAT
Price on request
Price on request
Battery 2
Price on request
Operation System
Price on request
Price on request
Additional Options 2
Price on request
Additional Options 5
Price on request
Additional Options 6
Price on request
Price on request
HDD/SSD
Price with VAT
Price on request
Price on request
Battery 2
Price on request
Operation System
Price on request
Price on request
Additional Options 2
Price on request
Additional Options 5
Price on request
Additional Options 6
Price on request
Price on request

Construction
Construction Chassis
Rubber
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Type
Fanless
Display
Diagonal
7 "
Maximum resolution
1024x600 Dots
Brightness
850 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Celeron N2930
Max CPU frequency
2.16 GHz
Memory
Form-factor
DDR3L
Default on Board Memory
4 GB
Maximum Memory
8 GB
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
1
RS-232
1
USB Total
2
USB v3.x
2
Drive interfaces
MicroSD
1
Extension Slots
SIM Card slots
Micro-SIM
Additional Functions
Camera Frontside
2 MP
Rear Camera
8 MP
GPS
GPS
Barcode Scanner
Optional
NFC
Yes
Fingerprint Scanner
Optional
Antenna characteristics
Cellular interfaces
4G
Bluetooth
v4.0
LED / Controls
LED
1xOn/Off LED, WWAN LED
Controls
Control Buttons, Function Keys
Connectors
Connectors
DB9, RJ45 Ethernet, 2xUSB, Audio (in/out/Mic), MicroSD card slot, Micro-SIM card slot
Docking Station
Yes
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
65 W
Supported Types of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Battery
Battery Capacity
2900 mA*h
Software
Operating System Compatibility
Windows Embedded Standart 8.1, Windows 10 IoT Enterprise, Windows Embedded 8.1 Industry
Operating System Installed
Windows Embedded Standard 7
Dimensions and weight
Width
225 mm
Height
168 mm
Depth
27 mm
Operating Conditions
Operating Temperature
-20..50 °C
Standards and Certifications
Certifications
CE, FCC
MIL-STD-810
MIL-STD-810G Test Method 516.4 Drop 120 cm
Dimensions
Net Weight
0.95 kg
Gross Weight
2 kg
