PISO-P64U-24V
ICP DAS
SKU: 06334400

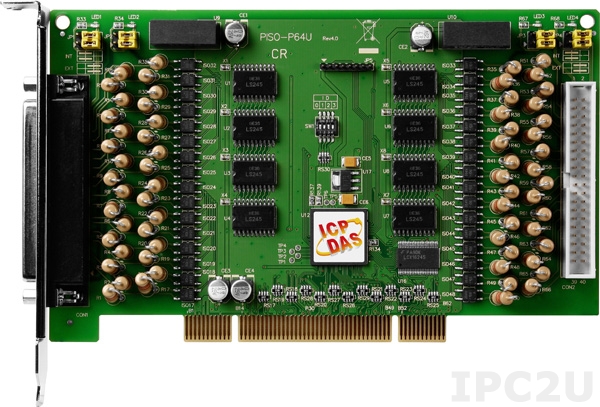

Universal PCI, 64-channel Optically Isolated Digital Input Board (RoHS), w/ 1x CA-4037B cable, 2x CA-4002 D-Sub connectors
Price on request
Available
Available
System Architecture
System Bus
Universal PCI
Digital Input
Total channels of digital input
64
Isolation of Digital Input
3750 V
Level of Logic "0"
0~1 V
Level of Logic "1"
20~28 V
Connectors
Internal Ports
40-pin box header
Connectors
DB37 Female
Cables
Included Cables
CA-4037B
Software
Operating System Compatibility
Linux kernel 2.6, Windows XP, Windows 7, Windows 8, Windows Vista
Development Software
LabVIEW, BCB, Delphi, VC, VB
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.16 kg
Gross Weight
0.42 kg
System Architecture
System Bus
Universal PCI
Digital Input
Total channels of digital input
64
Isolation of Digital Input
3750 V
Level of Logic "0"
0~1 V
Level of Logic "1"
20~28 V
Connectors
Internal Ports
40-pin box header
Connectors
DB37 Female
Cables
Included Cables
CA-4037B
Software
Operating System Compatibility
Linux kernel 2.6, Windows XP, Windows 7, Windows 8, Windows Vista
Development Software
LabVIEW, BCB, Delphi, VC, VB
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.16 kg
Gross Weight
0.42 kg
System Architecture
System Bus
Universal PCI
Digital Input
Total channels of digital input
64
Isolation of Digital Input
3750 V
Level of Logic "0"
0~1 V
Level of Logic "1"
20~28 V
Connectors
Internal Ports
40-pin box header
Connectors
DB37 Female
Cables
Included Cables
CA-4037B
Software
Operating System Compatibility
Linux kernel 2.6, Windows XP, Windows 7, Windows 8, Windows Vista
Development Software
LabVIEW, BCB, Delphi, VC, VB
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.16 kg
Gross Weight
0.42 kg
System Architecture
System Bus
Universal PCI
Digital Input
Total channels of digital input
64
Isolation of Digital Input
3750 V
Level of Logic "0"
0~1 V
Level of Logic "1"
20~28 V
Connectors
Internal Ports
40-pin box header
Connectors
DB37 Female
Cables
Included Cables
CA-4037B
Software
Operating System Compatibility
Linux kernel 2.6, Windows XP, Windows 7, Windows 8, Windows Vista
Development Software
LabVIEW, BCB, Delphi, VC, VB
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.16 kg
Gross Weight
0.42 kg
