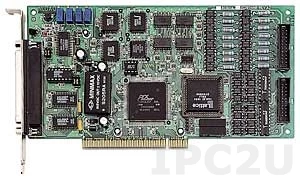

PCI-9114DG
ADLink
SKU: 01161100
Multifunction PCI Adapter, 32SE/16D 16 bit ADC, FIFO, 16 Isolated DI, 16 Isolated DO, Timer
Price on request
Available on order
Available on order
System Architecture
System Bus
PCI
Analog Input
Total channels of analog input
32
Single-Ended channels
32
Differential channels
16
Number of Bits
16 Bit
Sampling rate
100 Hz
Voltage range
+/-1.25 V, +/-2.5 V, +/-5 V, +/-10 V
Digital Input
Total channels of digital input
16
Isolation of Digital Input
2500 V
Type
Wet contact
Sink/Source
Sink
Level of Logic "0"
0~1.5 V
Level of Logic "1"
5~24 V
Number of channels
1
Counter capacity
16 Bit
Max frequency
2 kHz
Digital Output
Total channels of digital output
16
Type
Open collector
Sink/Source
Sink
Output voltage
5~35 V
Max. load current
350 mA
Connectors
Internal Ports
2x20-pin box header
Connectors
DB37 Female
Software
Operating System Compatibility
Windows XP, Windows 7, Linux OS
Development Software
LabVIEW, Visual Studio .NET, MATLAB, AD-Logger, DAQBench
Operating Conditions
Operating Temperature
0..55 °C
Dimensions
Net Weight
0.38 kg
Gross Weight
0.38 kg
