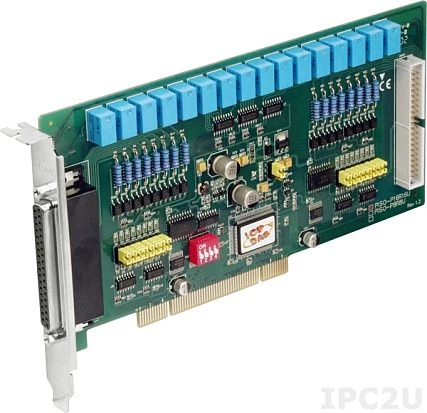

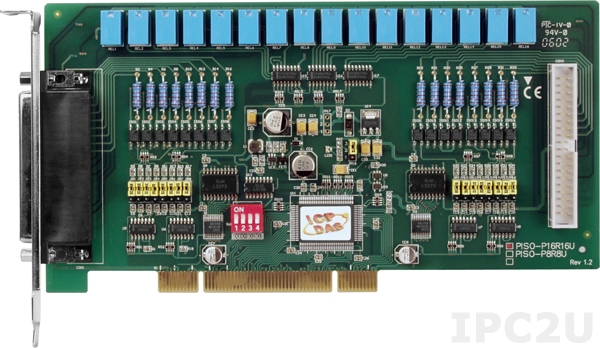

PISO-P16R16U
ICP DAS
SKU: 03708300
Universal PCI Isolated 16DI, 16 Relay Board
Price on request
Available
Available
System Architecture
System Bus
Universal PCI
Digital Input
Total channels of digital input
16
Isolation of Digital Input
3750 V
Level of Logic "0"
0~1 V
Level of Logic "1"
5~24 V
Digital Output
Total channels of digital output
16
Type
Electromagnitic relay
Relay (Form A)
8
Contact rating of relay (Form A)
05A@120V AC, 1A@24V DC
Relay (Form C)
8
Contact rating of relay (Form C)
0.5A@120V AC, 1A@30V DC
Connectors
Internal Ports
40-pin box header
Connectors
DB37 Female
Cables
Included Cables
CA-4037W
Software
Operating System Compatibility
Linux kernel 2.6, Windows XP, Windows 7, Windows Vista
Development Software
LabVIEW, BCB, Delphi, VC, VB
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.18 kg
Gross Weight
0.44 kg
