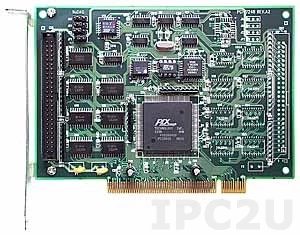

PCI-7224
ADLink
SKU: 01169300
PCI 24 Bit OPTO-22 Compatible Digital I/O Board
Price on request
Available
Available
System Architecture
System Bus
PCI
Digital Input-Output
Channels of DIO
24
Digital Input
Total channels of digital input
24
Type
Wet contact
Sink/Source
Sink
Level of Logic "0"
0~0.8 V
Level of Logic "1"
2~5.25 V
Digital Output
Total channels of digital output
24
Type
Open collector
Sink/Source
Sink
Output voltage
0.5~5 V
Max. load current
24 mA
Connectors
Connectors
50-pin box header
Software
Operating System Compatibility
Windows XP, Linux OS, Windows Vista
Development Software
LabVIEW, Visual Studio .NET, MATLAB, AD-Logger, DAQBench
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Gross Weight
0.5 kg
