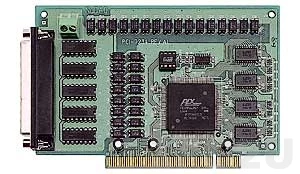

PCI-7234

PCI-7234

ADLink
SKU: 01168500
PCI Adapter, Isolated 32DO
Price on request
Available
Available

Daughter Boards
Price with VAT
Price on request
Price on request
Price on request
Daughter Boards
Price with VAT
Price on request
Price on request
Price on request

System Architecture
System Bus
PCI
Digital Output
Total channels of digital output
32
Type
Open collector
Sink/Source
Sink
Output voltage
5~35 V
Max. load current
500 mA
Connectors
Connectors
DB37 Female
Software
Operating System Compatibility
Windows XP, Windows 7, Linux OS
Development Software
LabVIEW, Visual Studio .NET, MATLAB, AD-Logger, DAQBench
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Gross Weight
0.5 kg
System Architecture
System Bus
PCI
Digital Output
Total channels of digital output
32
Type
Open collector
Sink/Source
Sink
Output voltage
5~35 V
Max. load current
500 mA
Connectors
Connectors
DB37 Female
Software
Operating System Compatibility
Windows XP, Windows 7, Linux OS
Development Software
LabVIEW, Visual Studio .NET, MATLAB, AD-Logger, DAQBench
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Gross Weight
0.5 kg
System Architecture
System Bus
PCI
Digital Output
Total channels of digital output
32
Type
Open collector
Sink/Source
Sink
Output voltage
5~35 V
Max. load current
500 mA
Connectors
Connectors
DB37 Female
Software
Operating System Compatibility
Windows XP, Windows 7, Linux OS
Development Software
LabVIEW, Visual Studio .NET, MATLAB, AD-Logger, DAQBench
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Gross Weight
0.5 kg
System Architecture
System Bus
PCI
Digital Output
Total channels of digital output
32
Type
Open collector
Sink/Source
Sink
Output voltage
5~35 V
Max. load current
500 mA
Connectors
Connectors
DB37 Female
Software
Operating System Compatibility
Windows XP, Windows 7, Linux OS
Development Software
LabVIEW, Visual Studio .NET, MATLAB, AD-Logger, DAQBench
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Gross Weight
0.5 kg

Documentation
Datasheet LPCIe-7230.PCI/LPCI/LPCIe-7230 Manual PCI-/cPCI-/LPCI-/LPCIe723X Series
Documentation
Datasheet LPCIe-7230.PCI/LPCI/LPCIe-7230 Manual PCI-/cPCI-/LPCI-/LPCIe723X Series
Documentation
Datasheet LPCIe-7230.PCI/LPCI/LPCIe-7230 Manual PCI-/cPCI-/LPCI-/LPCIe723X Series
Documentation
Datasheet LPCIe-7230.PCI/LPCI/LPCIe-7230 Manual PCI-/cPCI-/LPCI-/LPCIe723X Series
