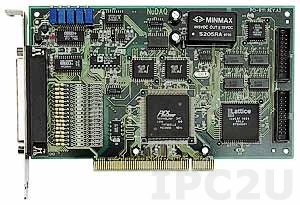

PCI-9111HR
ADLink
SKU: 01162100
Multifunction PCI Adapter, 16SE ADC, FIFO, 1 DAC, 16 DI, 16 DO, Timer
Price on request
Available on order
Available on order
System Architecture
System Bus
PCI
Analog Input
Total channels of analog input
16
Single-Ended channels
16
Number of Bits
16 Bit
Sampling rate
100 Hz
Voltage range
+/-1.25 V, +/-2.5 V, +/-5 V, +/-10 V
Analog Output
Channels of analog input
1
Voltage range
0...10 V, +/-10 V
Digital Input
Total channels of digital input
16
Type
Wet contact
Sink/Source
Sink
Level of Logic "0"
0~0 V
Level of Logic "1"
5~5 V
Digital Output
Total channels of digital output
16
Type
Open collector
Sink/Source
Sink
Output voltage
0~5 V
Connectors
Internal Ports
2x20-pin box header
Connectors
DB37 Female
Software
Operating System Compatibility
Windows XP, Windows 7, Linux OS
Development Software
LabVIEW, Visual Studio .NET, MATLAB, AD-Logger, DAQBench
Operating Conditions
Operating Temperature
0..55 °C
Dimensions
Net Weight
0.35 kg
Gross Weight
0.35 kg
System Architecture
System Bus
PCI
Analog Input
Total channels of analog input
16
Single-Ended channels
16
Number of Bits
16 Bit
Sampling rate
100 Hz
Voltage range
+/-1.25 V, +/-2.5 V, +/-5 V, +/-10 V
Analog Output
Channels of analog input
1
Voltage range
0...10 V, +/-10 V
Digital Input
Total channels of digital input
16
Type
Wet contact
Sink/Source
Sink
Level of Logic "0"
0~0 V
Level of Logic "1"
5~5 V
Digital Output
Total channels of digital output
16
Type
Open collector
Sink/Source
Sink
Output voltage
0~5 V
Connectors
Internal Ports
2x20-pin box header
Connectors
DB37 Female
Software
Operating System Compatibility
Windows XP, Windows 7, Linux OS
Development Software
LabVIEW, Visual Studio .NET, MATLAB, AD-Logger, DAQBench
Operating Conditions
Operating Temperature
0..55 °C
Dimensions
Net Weight
0.35 kg
Gross Weight
0.35 kg
