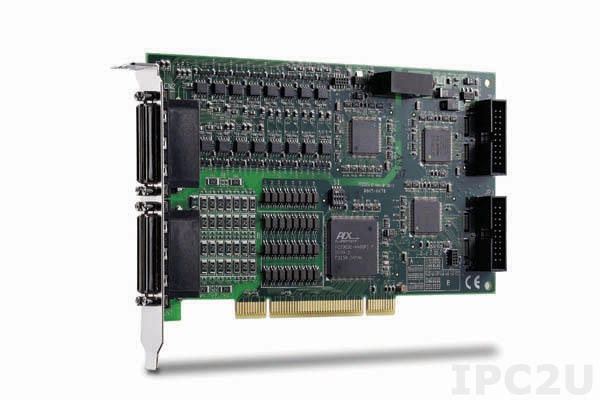

PCI-7442
ADLink
SKU: 03440900
PCI Isolated 64DI and 64DO Board
Price on request
Available
Available
System Architecture
System Bus
Universal PCI
Digital Input
Total channels of digital input
64
Isolation of Digital Input
1250 V
Type
Wet contact
Sink/Source
Sink
Level of Logic "0"
0~1.5 V
Level of Logic "1"
5~28 V
Digital Output
Total channels of digital output
64
Type
Open collector
Sink/Source
Sink
Output voltage
5~40 V
Max. load current
250 mA
Connectors
Connectors
68-pin Dual VHDCI female
Software
Operating System Compatibility
Windows XP, Windows 7, Linux OS
Development Software
LabVIEW, Visual Studio .NET, MATLAB, AD-Logger, DAQBench
Operating Conditions
Operating Temperature
0..55 °C
Dimensions
Net Weight
0.38 kg
Gross Weight
0.38 kg
