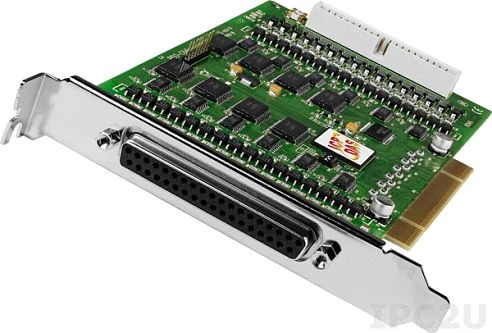

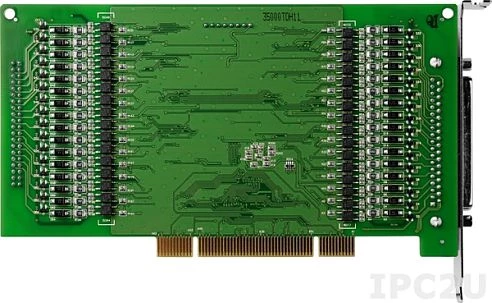

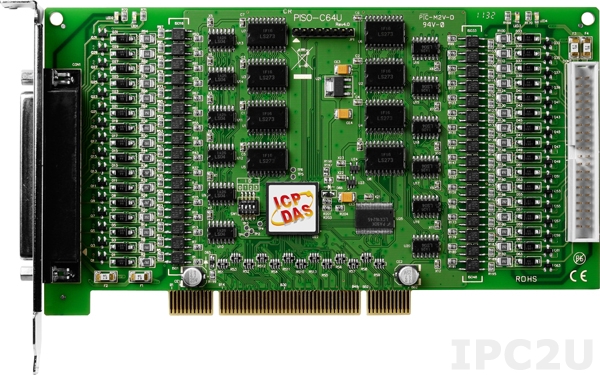

PISO-C64U
ICP DAS
SKU: 05991100
PCI Isolated 64 OC DO Card, Adapter CA-4037x1, Cable Socket CA-4002x2
Price on request
Available on order
Available on order
System Architecture
System Bus
Universal PCI
Digital Output
Total channels of digital output
64
Type
Open collector
Sink/Source
Sink
Output voltage
0~30 V
Max. load current
100 mA
Connectors
Internal Ports
40-pin box header
Connectors
DB37 Female
Cables
Included Cables
CA-4037B
Software
Operating System Compatibility
Linux kernel 2.6, Windows XP, Windows 7, Windows 8, Windows Vista
Development Software
LabVIEW, BCB, Delphi, VC, VB
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.25 kg
Gross Weight
0.48 kg
