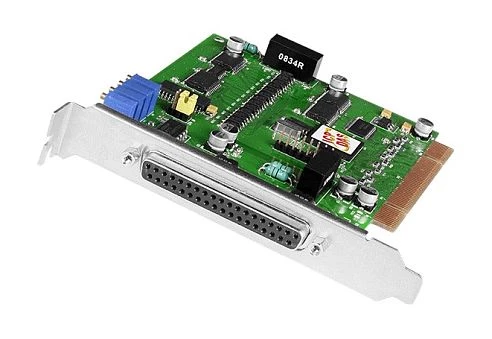

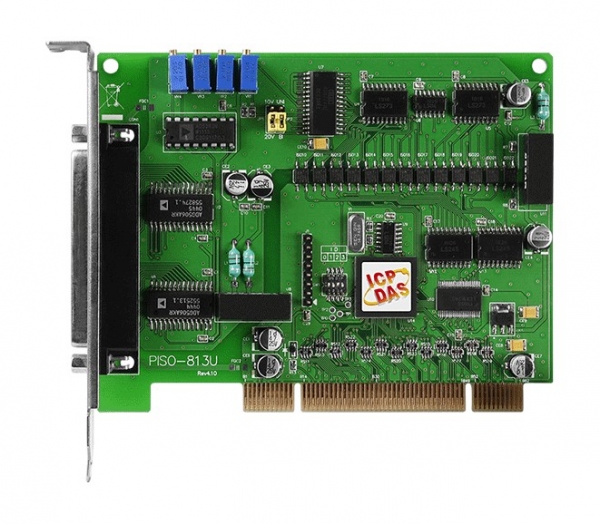

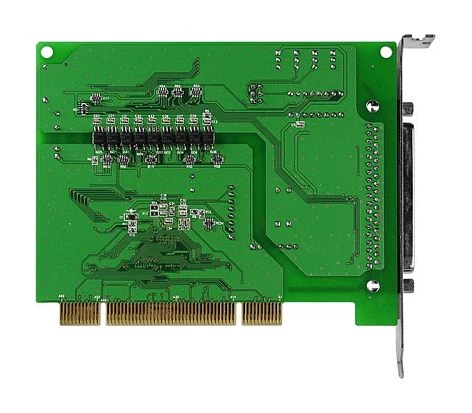

PISO-813U
ICP DAS
SKU: 06561200
Universal PCI Adapter, 32SE ADC w/Isolation
Price on request
Available on order
Available on order
System Architecture
System Bus
Universal PCI
Analog Input
Total channels of analog input
32
Single-Ended channels
32
Number of Bits
12 Bit
Sampling rate
10000 Hz
Voltage range
+/-1.25 V, +/-2.5 V, +/-5 V, +/-10 V, 0...2.5 V, 0...5 V, 0...10 V, +/-625 mV, 0…1.25 V, 0…625 mV
Connectors
Connectors
DB37 Female
Software
Operating System Compatibility
Linux kernel 2.6, Windows XP, Windows 7, Windows 8, Windows Vista
Development Software
LabVIEW, BCB, Delphi, VC, VB
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.3 kg
Gross Weight
0.3 kg
